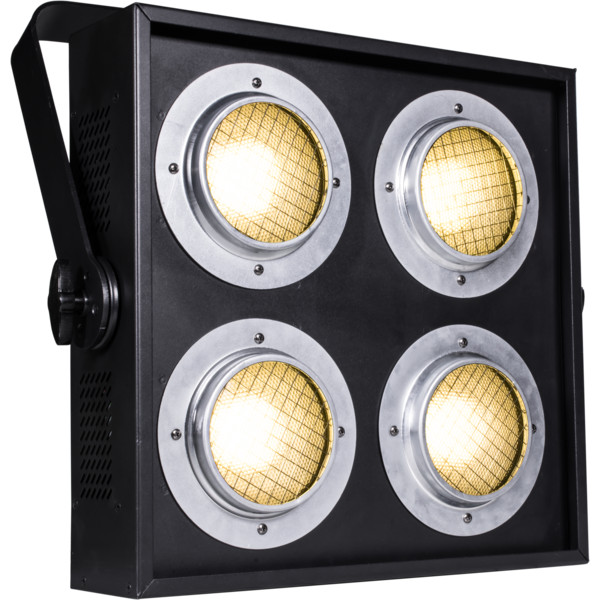

LIGHT SOURCE
Source:4x100W
White COB LEDs
CCT:3.000K
Luminous flux:22'594lm@full
Lux:957lx@5 m full
Source life expectancy:>50.000h
OPTICS

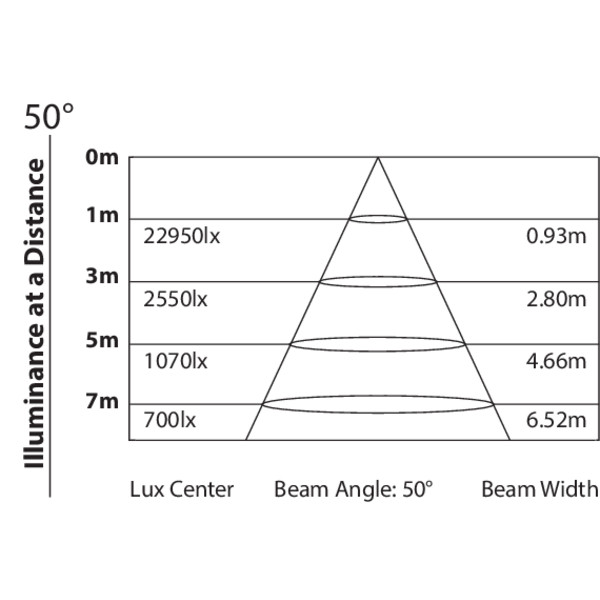

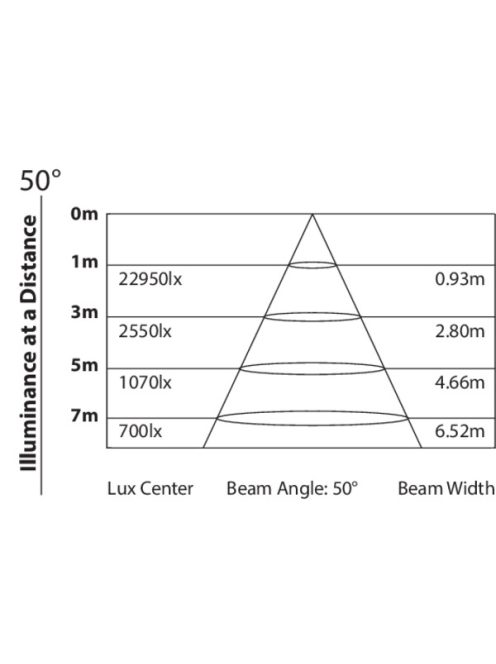

Beam angle:58°
Field angle:85°
Lens type:HD anti-reflection lenses with achromatic coating
DYNAMIC EFFECTS
Pixel patterns:pre-programmed dynamic and static patterns
Static colour mode:selection of static colour
Manual colour mode:manual adjustment of colour
Auto mode:built-in programs with execution speed adjustment
BODY
Body:sturdy aluminum profile
Body colour:black
|
|
CONTROL
Protocols:DMX512
DMX channels:
4 / 6 / 9channel
Pixel control:pixel2pixel control
Display:Graphic User Interface
Firmware upgrade:yes, via USB - DMX interface (UPBOX1) not included
Master/Slave:for synchronised operation of more units linked in a chain
ELECTRONICS
Dimmer:linear 0 ~ 100% electronic dimmer
Dimmer curves:4
selectable dimming modes available
Strobe / shutter:1 - 28
Hz, electronic
Operating temperature:-10° ~ +45°
LED Control:flicker free operation
Selectable PWM:600 ~ 25.000 Hz
ELECTRICAL
Mains power supply:100-240 V – 50/60 Hz
Max power consumption:325W
Output (at 230 V):8
units on a single power line
Power factor:> 0,95
PHYSICAL
Cooling:active, silent operation
Suspension and fixing:bracket for hanging and positioning

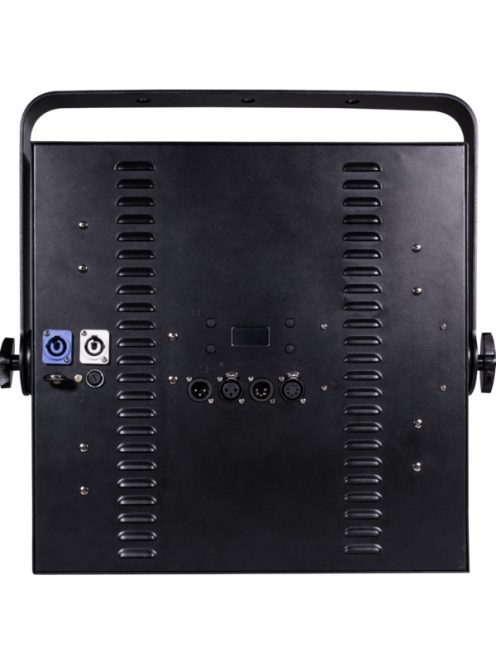

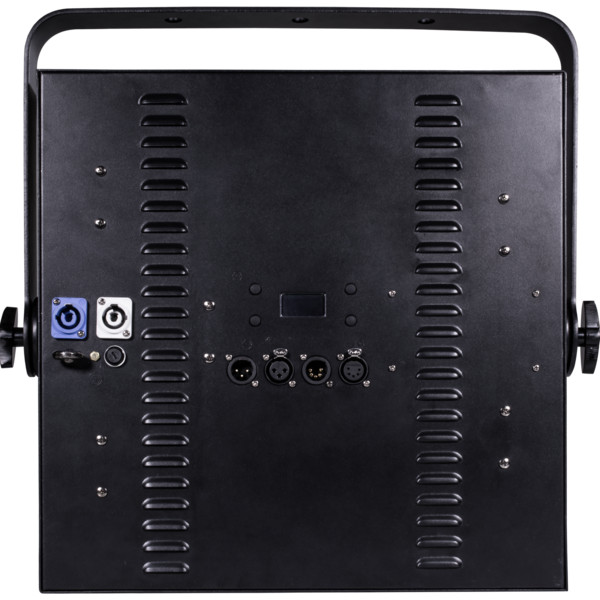

Signal connection:XLR 3p + 5p IN/OUT connectors
Power connection:Neutrik powerCON IN/OUT connectors
IP rating:30

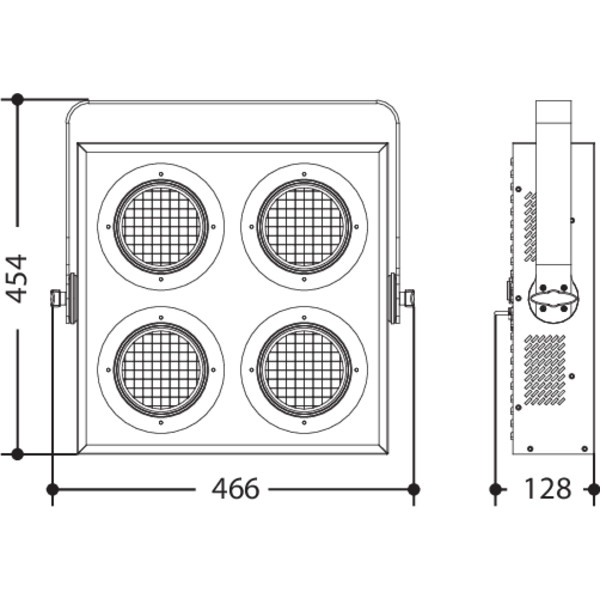

Dimensions (WxHxD):
466x454x128mm
Weight:11,4kg
|
