LIGHT SOURCE

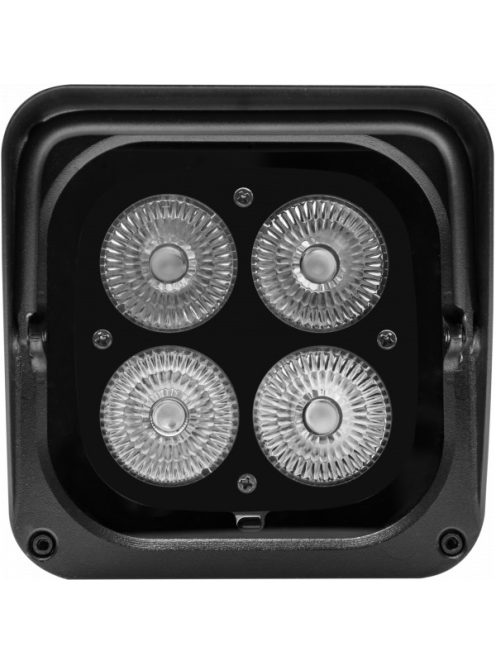

Source: 4x8W RGBW LEDs

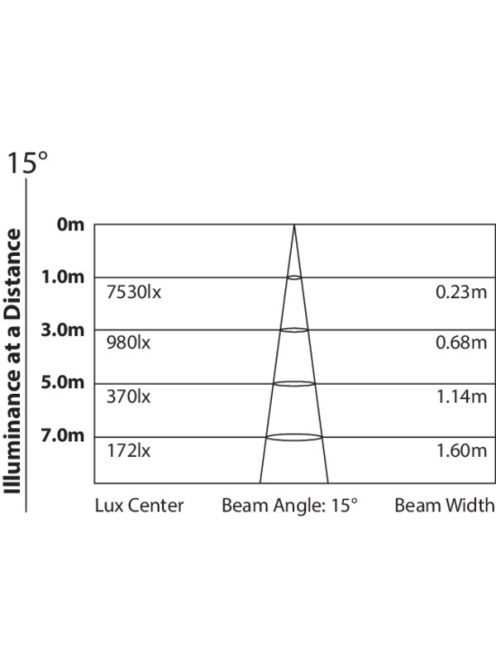

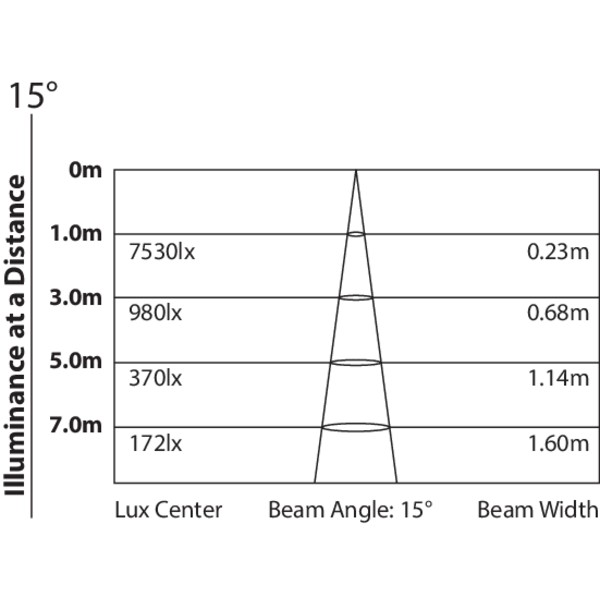

Lux: 980lx @3 m full
Source life expectancy: > 50.000 h
OPTICS
Beam angle: 15°
Field angle: 30°
Lens diameter: 42mm
Additional optics: 25° and 45° optional
COLOUR SYSTEM
Colour mixing: RGBW / FC
White presets: 3200 K ~ 10.000K
Colour wheel: virtual colour wheel with presets
DYNAMIC EFFECTS
Static colour mode: selection of static colour
Manual colour mode: manual adjustment of colour
Auto mode: built-in programs with execution speed adjustment
BODY
Tilt angle: ° adjustable foot support for tilt regulation (up to 20°)
Body: sturdy die-cast aluminium body conceived for long-time durability
Body colour: black
|
|
CONTROL
Protocols: DMX512
DMX channels: 4 / 6 / 10channel
W-DMX: integrated, proprietary protocol compatible with WIFIBOX, WDBOX

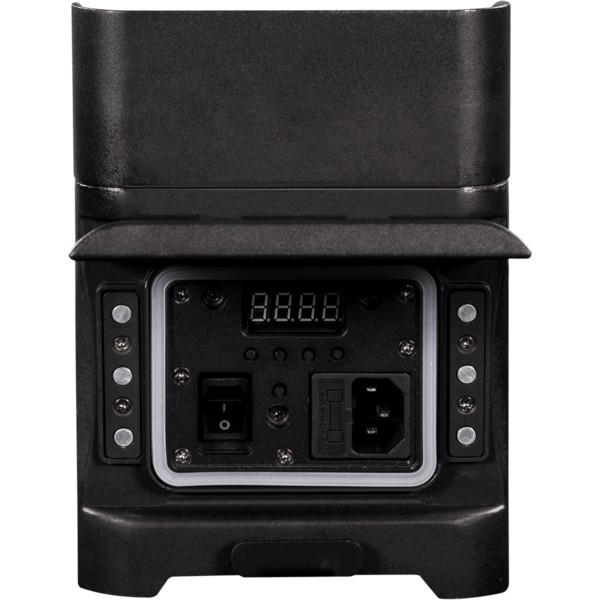

Display: LED display user interface
Firmware upgrade: yes, via USB - DMX interface (UPBOX1) not included
IR: infrared sensor controlled by remote
Master/Slave: for synchronized operation of more units linked in a chain
ELECTRONICS
Dimmer: linear 0 ~ 100% electronic dimmer
Dimmer curves: 4 different dimming curves available
Strobe / shutter: 1 - 25 Hz, electronic
Operating temperature: 0° ~ +35°
Flicker: flicker free operation
ELECTRICAL
Power supply: 100-240 V – 50/60 Hz
BATTERY
Battery: 11,1V lithium
Estimated battery life in colour change mode up to: 12h
Estimated battery life in full-mode up to: 6h
Re-charge connection: power cable
Re-charge time: 5h/max
Battery status: shown on display
PHYSICAL
Cooling: passive cooling and fan-free
Sospension and fixing: M12 threaded insert for easy clamp installation
Power connection: IEC 10 A IN
IP rating: 54
Dimensions (WxHxD): 138x191x145mm
Weight: 3,6kg
|
