LIGHT SOURCE

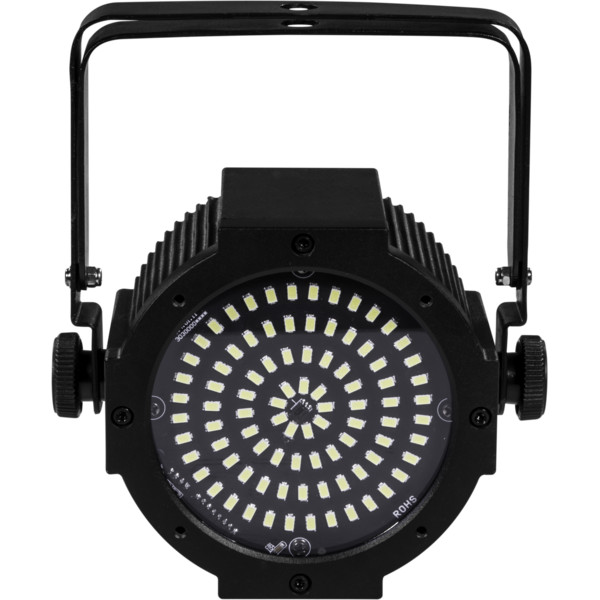

Source: 90x0.5W Cold White LEDs
CCT: 6.000K
CRI: 72
Luminous flux: 1'808lm
Lux: 59,6lx @3 m
Source life expectancy: > 50.000 h
OPTICS
Beam angle: 110°
Field angle: 149°
COLOUR SYSTEM
Macros: several pre-build pixel macros with adjustable speed
DYNAMIC EFFECTS
Manual colour mode: manual adjustment of dimmer and strobe
Auto mode: built-in programs with execution speed adjustment
BODY
Body: sturdy die-cast aluminium body conceived for long-time durability
Body colour: black
|
|
CONTROL
Protocols: DMX512
DMX channels: 1 / 4 / 5 / 8channel
Pixel control: ring control
Display: LCD display
Master/Slave: for synchronized operation of more units linked in a chain
ELECTRONICS
Strobe / shutter: 1 - 28 Hz, electronic
Flicker: flicker free operation
ELECTRICAL
Power supply: 100-240 V – 50/60 Hz
Power consumption (at 230 V): 23,5W
Power consumption (at 120 V): 23,9W
Output (at 230 V): 54 units on a single power line
Output (at 120 V): 29 units on a single power line
PHYSICAL
Cooling: passive cooling and fan-free
Sospension and fixing: double hanging bracket suitable for safe hanging and for floor positioning

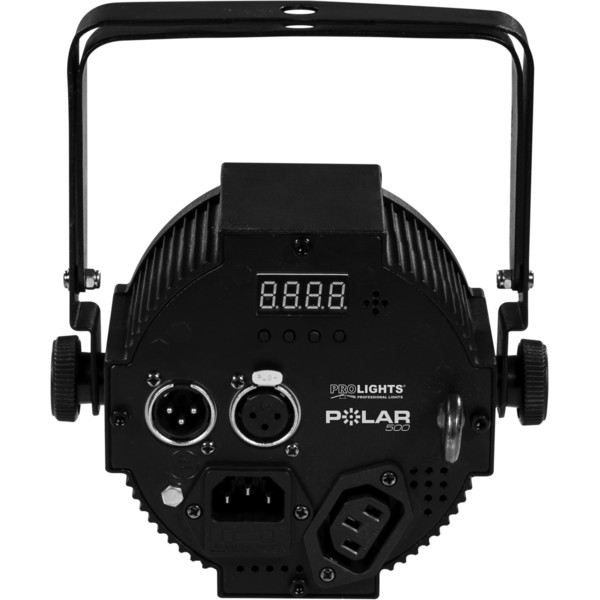

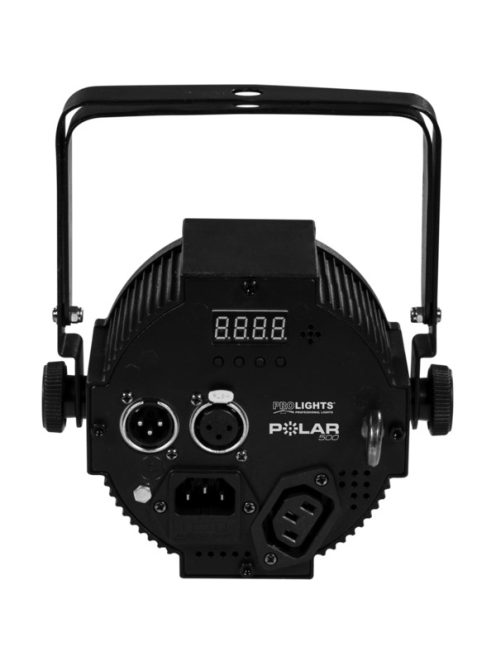

Signal connection: XLR 3p IN/OUT connectors
Power connection: IEC IN/OUT connectors
IP rating: 30

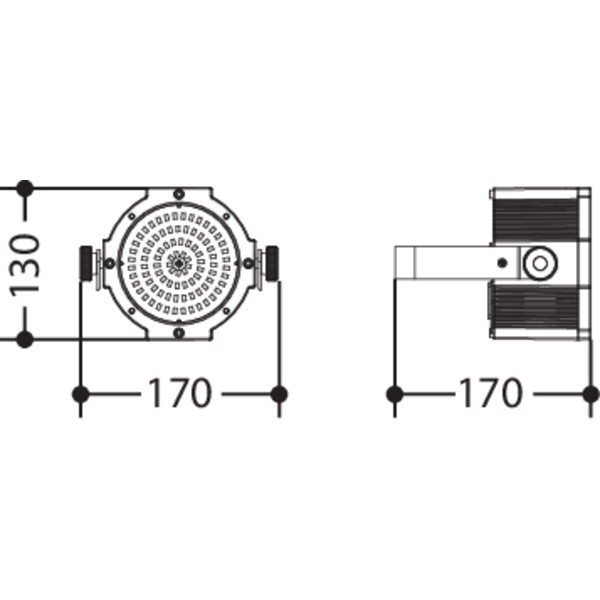

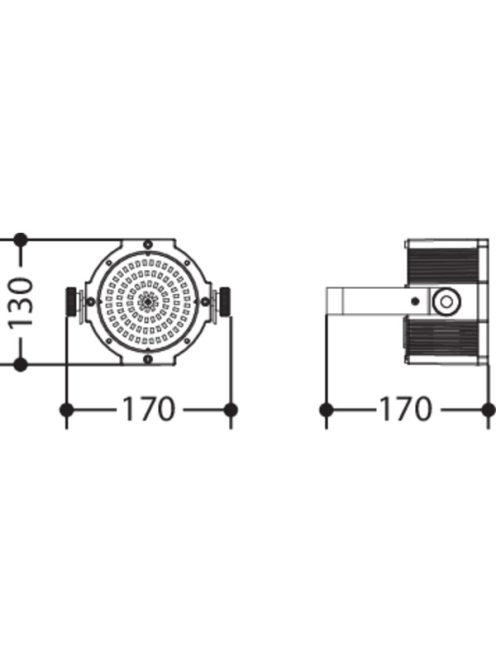

Dimensions (WxHxD): 170x130x170mm
Weight: 1,5kg
|
