LIGHT SOURCE
Source: 6x3 W + 6x1W RGB + Neutral White
CCT: NW 4.000K
CRI: 80
Source life expectancy: > 50.000 h
OPTICS

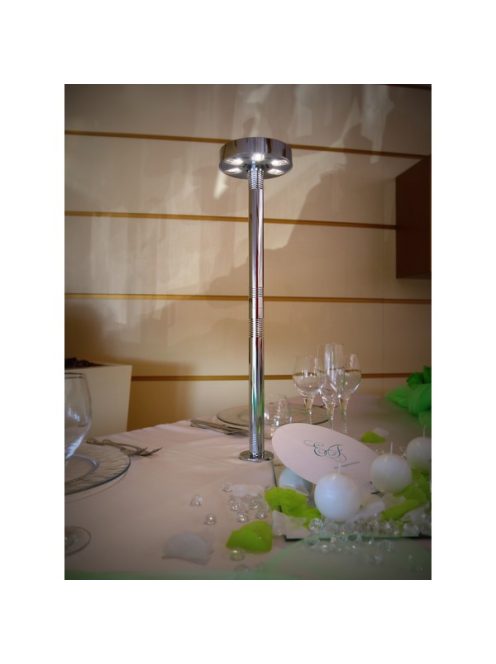

Beam angle: 360° designed to light up standard 160/180 cm ceremony tables
DYNAMIC EFFECTS
Static mode: selection of static colour
Manual mode: manual adjustment of colour
BODY
Hardware on-board: magnetic base
Body: sturdy die-cast aluminium body
Body colour: mirror and white finishing
Other: 1 x TABLEDDSK22W and 1x1 recharger included inside single unit box
CONTROL
Protocols: W-DMX
DMX channels: 4 / 7 / 10 / 12channel
Wireless Control: included, wireless solution receiver
Display: Graphic User Interface
Firmware upgrade: yes, via USB - DMX interface (UPBOX1) not included
IR: infrared sensor controlled by remote (included in the pack, not included in single unit)
|
|
ELECTRONICS
Dimmer: linear 0 ~ 100% electronic dimmer
Dimmer curves: 4 selectable dimming modes available
Strobe / shutter: 1 - 30 Hz, electronic
Operating temperature: -10° ~ +45°
ELECTRICAL
Mains power supply: DC 24 V - 1 A
Max power consumption: 8,8W
BATTERY
Battery: 2,20 Ah - 14,8V lithium
Estimated battery life in colour change mode up to: 14,5h
Estimated battery life in single colour mode up to: R: 19 h - G: 17,5 h - B: 17,5 h - W: 17,5h
Estimated battery life in full-mode up to: 9h

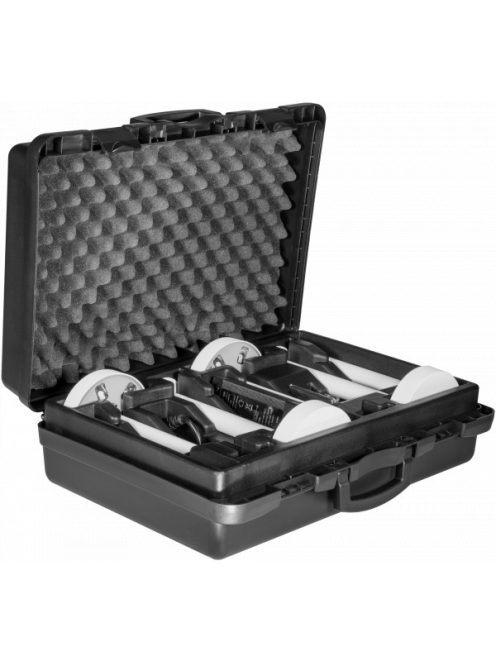

Re-charge connection: power cable fast-charge in pelican case
Re-charge time: 4h/max
Battery status: shown on display
PHYSICAL
IP rating: 30
Suspension and fixing: magnetic base to attach on every metal surface
Data connection: W-DMX receiver

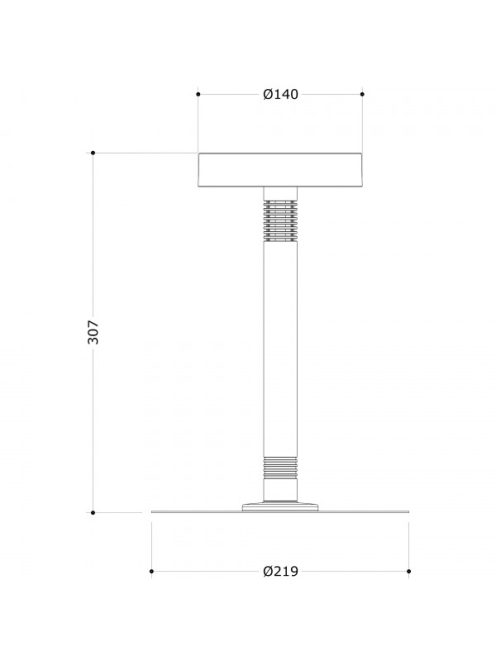

Dimensions (WxHxD): 140x307x220mm
Weight: 1,18kg
CERTIFICATIONS / APPROVALS
Certifications / Approvals: CE, UKCA, RCM
|
