LIGHT SOURCE
Source:
1.728x1W
RGBW LEDs
CCT:full ON 6.500K
Luminous flux:
strobing: 180'000 lm - full static:31'792lm
Lux:full static: 1'570lx
@3 m full
Lux:strobing: 565lx
@5 m full
Source life expectancy:>30.000h
OPTICS
Beam angle:120°
Field angle:155°
COLOUR SYSTEM

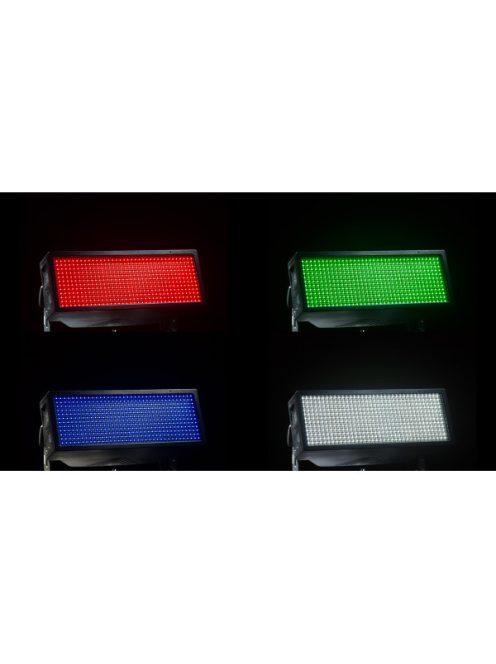

Colour mixing:RGBW / FC
DYNAMIC EFFECTS
Rotating gobos:dynamic patterns with speed and rotation control

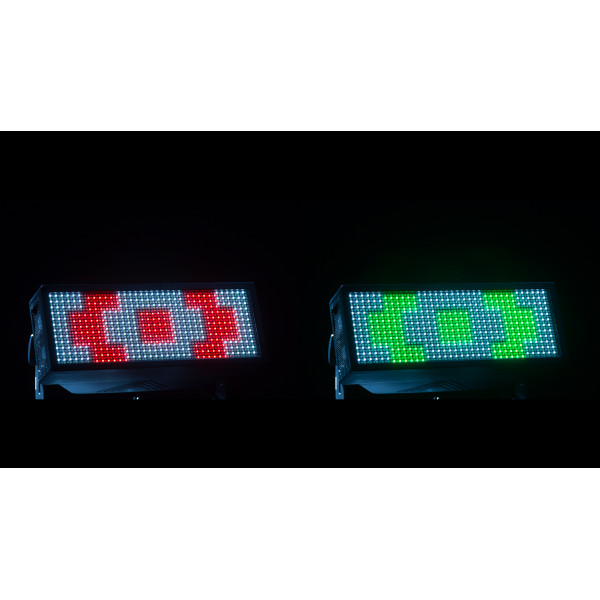

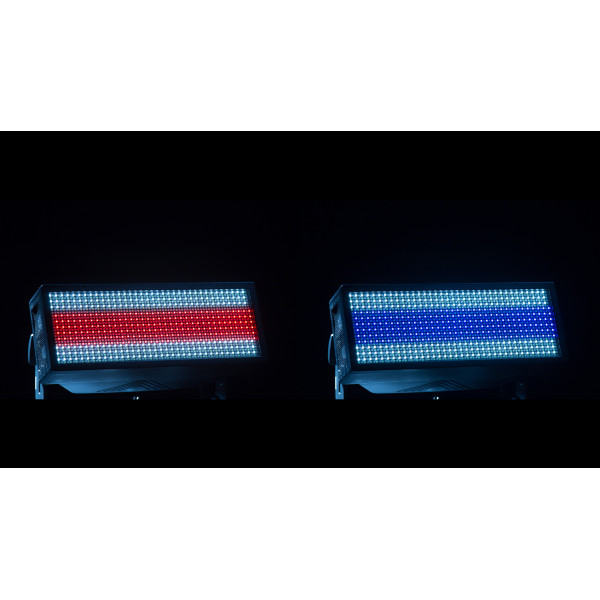

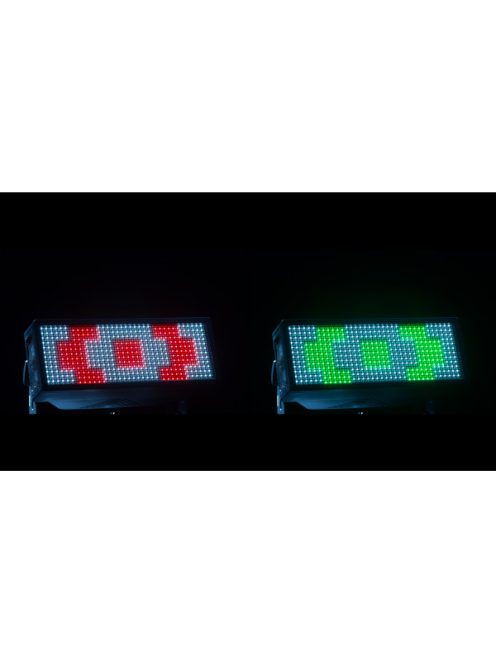

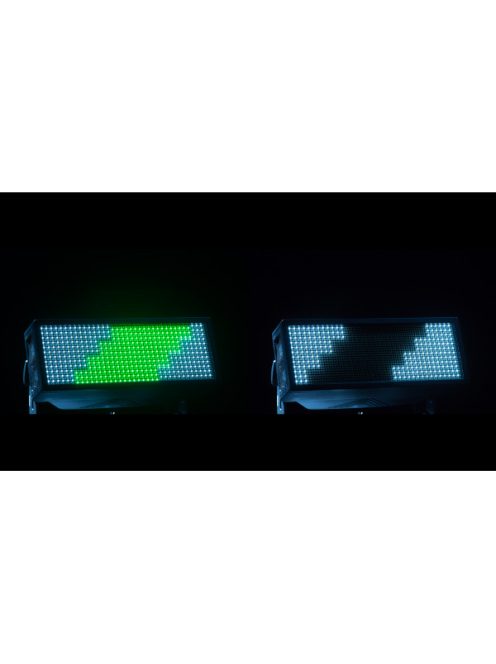

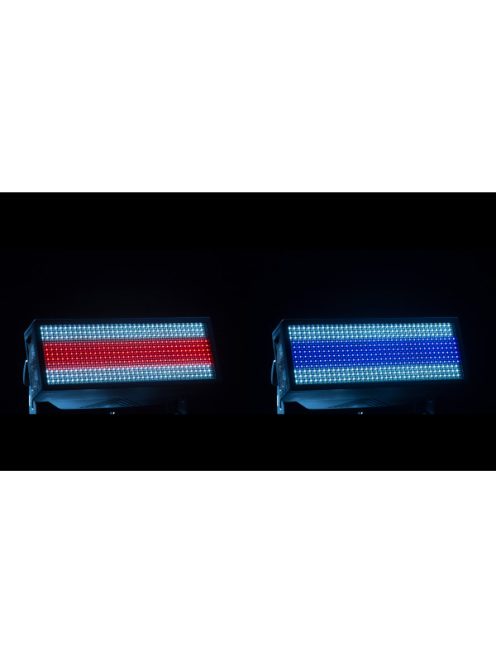

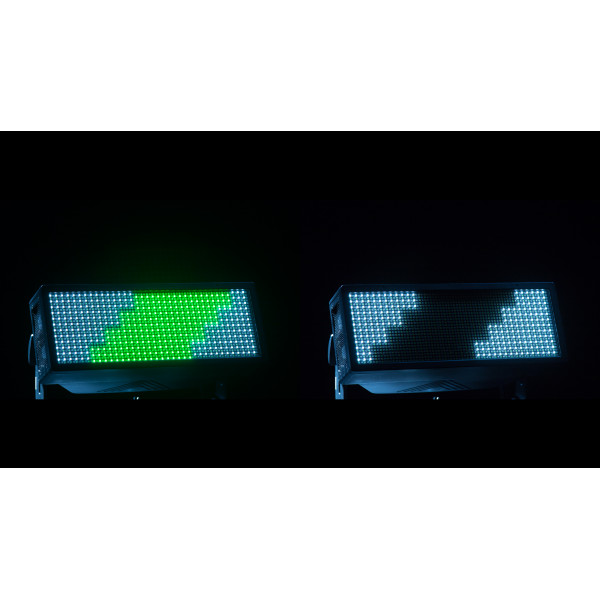

Pixel patterns:pre-programmed dynamic and static patterns
FX generator:adjustable foreground/background colour, index, speed, direction
Static colour mode:selection of static colour
Manual colour mode:manual adjustment of colour
Auto mode:built-in programs with execution speed adjustment
BODY

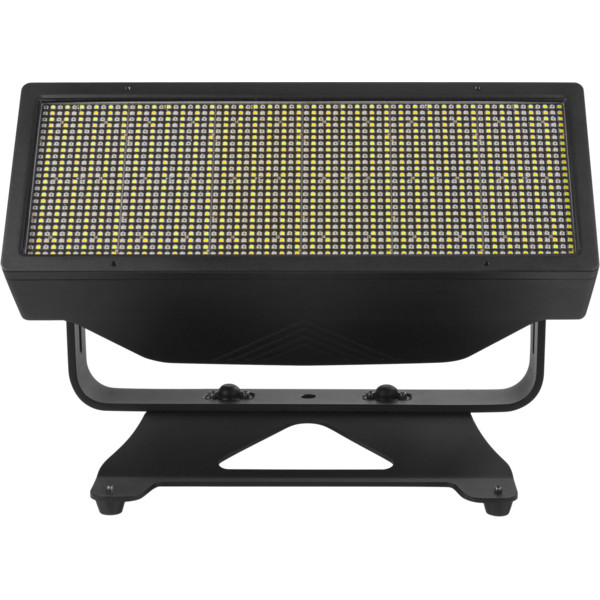

Body:sturdy die-cast aluminium body
Body colour:black
|
|
CONTROL
Protocols:DMX512, RDM, Art-Net, Kling-Net
Pixel control:
1 / 2 / 4 / 8 / 16 / 48
individually select and control sections
RDM:RDM ready for remote monitoring and settings

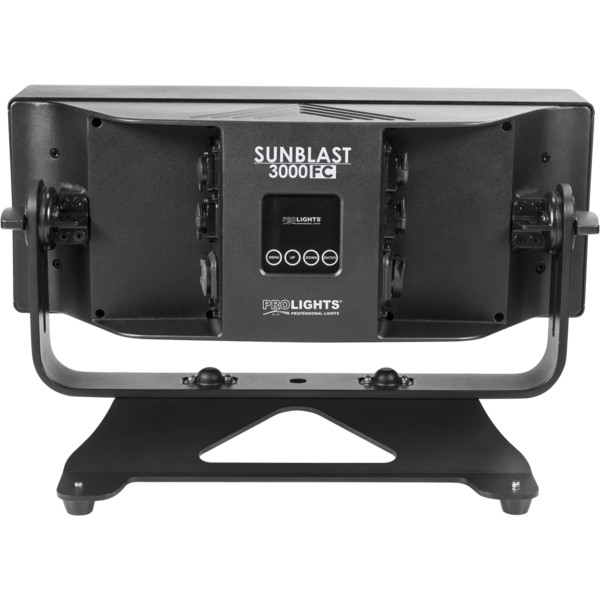

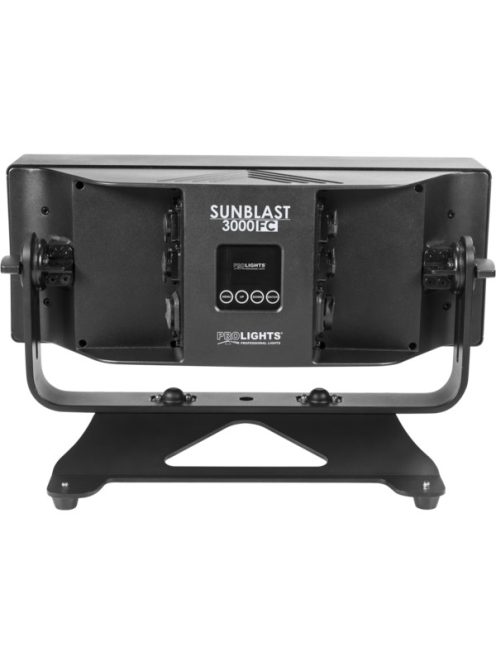

Display:black TFT touch display
Firmware upgrade:yes, via USB - DMX interface (UPBOX1) not included
ELECTRONICS
Dimmer:linear 0 ~ 100% electronic dimmer
Dimmer curves:4
selectable dimming modes available
Strobe / shutter:1 - 30
Hz, electronic
Operating temperature:-10° ~ +45°
Selectable PWM:600 ~ 25.000 Hz
ELECTRICAL
Mains power supply:100-240 V – 50/60 Hz
Max power consumption:strobe : 1.500 W (peak) - static:589W
Max power consumption (at 120 V):
strobe: 1.550 W (peak) - static 602W
Output (at 230 V):2
units on a single power line
Output (at 120 V):1
units on a single power line
PHYSICAL
Cooling:active, silent operation
Suspension and fixing:hanging bracket for floor positioning with "Quick-Lock" system
Signal connection:Seetronic XLR 5p IN/OUT connectors
Data connection:Art-Net
RJ45 IN/OUT
Power connection:Seetronic powerCON waterproof IN/OUT connectors
IP rating:65
for temporary outdoor application, not for fixed installation

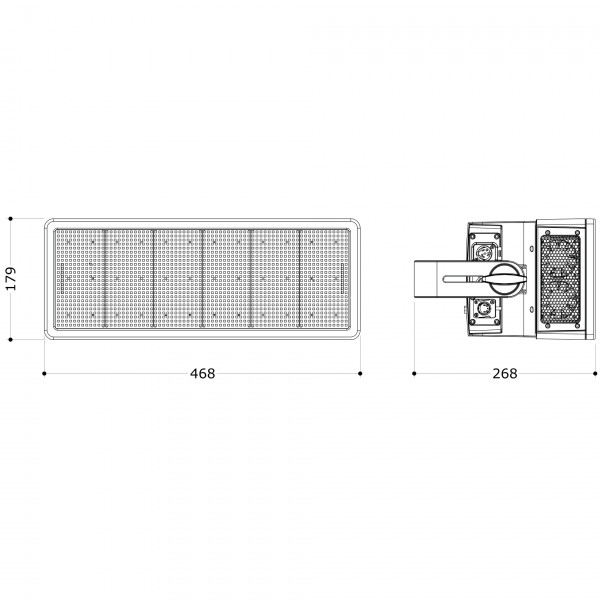

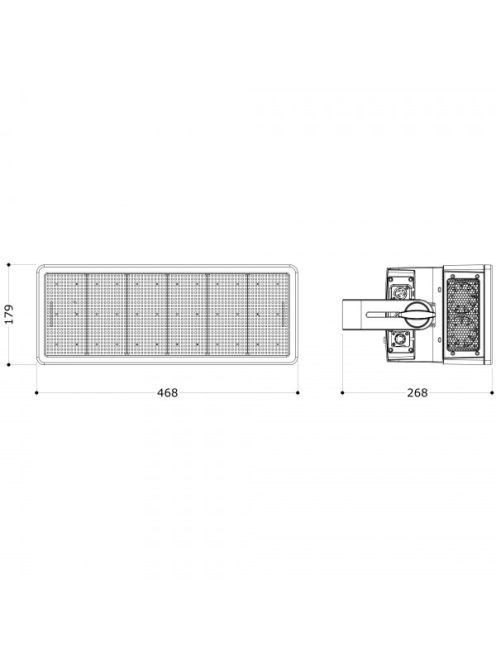

Dimensions (WxHxD):
468x179x268mm
Weight:14kg
|
