LIGHT SOURCE
Source:40W
LEDs
CCT:(TU) 3.050 K - (DY) 5.000K
Luminous flux:(TU) (20°) 856 lm; (64°) 2'183lm
@full
Luminous flux:(DY) (20°) 1'168 lm (64°) 2'851 lm @full
Lux:(TU) (20°) 236 lx - (64°)86lx
@5 m full
Lux:(DY) (20°) 321 lx - (64°)113lx
@5 m full
CRI:(TU) >92 - (DY) >81
TLCI:(TU) >93; (DY) >67
TM30 Rf:(TU) >90; (DY) >80
TM30 Rg:(TU) >99; (DY) >95
Source life expectancy:>50.000h
OPTICS
Zoom:20° - 64°
half peak angle
Lens diameter:3,93'' - 100mm
Lens type:Fresnel zoom lens
Other:spigot not included; gel frame and barndoors included
COLOUR SYSTEM
Macros:several pre-build macros with adjustable speed
DYNAMIC EFFECTS
Static colour mode:selection of static dimmer
Manual colour mode:manual adjust of dimmer throught menu and knob
Auto mode:built-in programs with execution speed adjustment
BODY
Body:aluminium die-casting
Body colour:black
|
|
CONTROL
Protocols:DMX512, RDM, rotatory knob
DMX channels:1 / 2-1 / 2-2 / 3 / 5
channel
RDM:RDM ready for remote monitoring and settings
Display:Graphic User Interface
Firmware upgrade:yes, via USB - DMX interface (UPBOX1) not included
Master/Slave:for synchronised operation of more units linked in a chain
Other:16bit control of dimmer
ELECTRONICS
Dimmer:linear 0 ~ 100%, manual knob dimmer
Dimmer curves:4
selectable dimming modes available
Strobe / shutter:1 - 28
Hz, electronic
Operating temperature:-10° ~ +45°
LED Control:flicker free frequency with adjustable PWM
Selectable PWM:600 ~ 25.000 Hz
ELECTRICAL
Mains power supply:100-240 V – 50/60 Hz
Max power consumption:35W
Power factor:>0,55
PHYSICAL
Cooling:passive cooling and fan-free
Suspension and fixing:bracket for hanging and positioning
Signal connection:DMX 5p IN/OUT
Power connection:16 A Schuko plug
IP rating:20

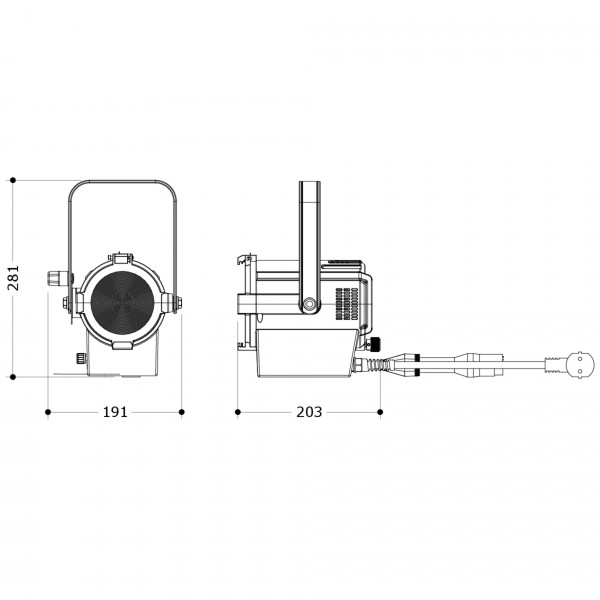

Dimensions (WxHxD):
191x281x203mm
Weight:2,38kg
|
