LIGHT SOURCE
Source: 260W 6 colour custom LEDs source (red, orange, green, royal blue, blue, lime)
CCT: 2.800 K ~ 10.000K
Luminous flux: (17°) 4'653 lm - (57°) 7'896lm @full

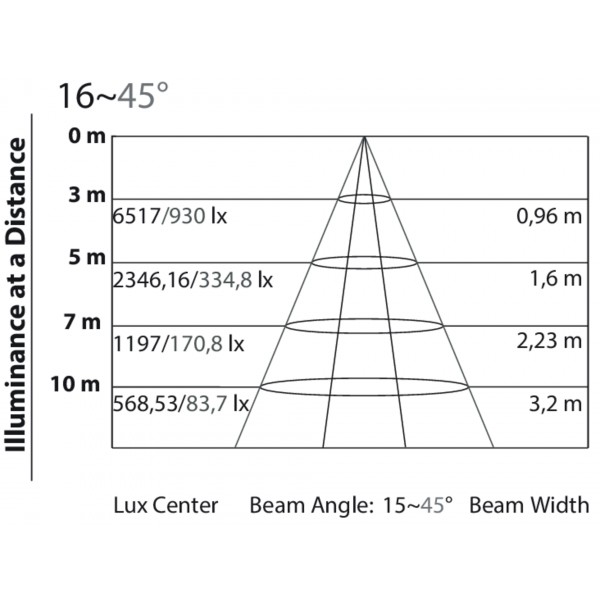

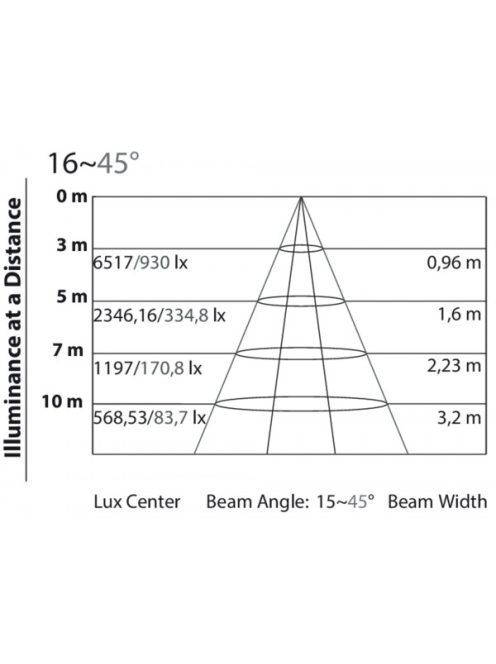

Lux: (17°) 1'678 lx - (57°) 344lx @5 m full
CRI: 90 @ 3200K; 89 @ 5600K
R9: 80 @ 3200K; 87 @ 5600K
TLCI: 77 @ 5600K
TM30 Rf: 87 @ 3200K; 81 @ 5600K
TM30 Rg: 106 @ 3200K; 106@ 5600K
Source life expectancy: > 50.000 h
OPTICS
Zoom: 17° - 57° half peak angle
Lens diameter: 8'' - 200mm
Lens type: Fresnel zoom lens
Focus: manual
COLOUR SYSTEM
Colour mixing: tunable white + colour
CTC: CTC control, + / - green correction, Tungsten emulation
White presets: 2.800 K -10.000K
Colour wheel: virtual colour wheel with macros
Macros: several pre-build macros with adjustable speed
DYNAMIC EFFECTS
Static colour mode: selection of static colour
Manual colour mode: manual adjustment of intensity, CT, colour correction from knob
Auto mode: built-in programs with execution speed adjustment
Special features: linear crossfade channel from any white to any colour; virtual CTO on colours
BODY
Hardware on-board: filter frame, 8 doors barndoor, spigot
Body: sturdy die-cast aluminium body
Body colour: black
|
|
CONTROL
Protocols: DMX512, RDM, rotatory knob
DMX channels: 1 / 2 / 5 - 1 / 5 - 2 / 7 / 9 / 12 / 13 / 16 / 19 / 21channel
RDM: RDM ready for remote monitoring and settings
Display: Graphic User Interface
Firmware upgrade: yes, via USB - DMX interface (UPBOX1) not included
Master/Slave: for synchronized operation of more units linked in a chain
Other: 16bit control of dimmer and colour
ELECTRONICS
Dimmer: linear 0 ~ 100% electronic dimmer
Dimmer curves: 4 selectable dimming modes available
Strobe / shutter: 1 - 30 Hz, electronic
Operating temperature: -10° ~ +45°
LED Control: flicker free frequency with adjustable PWM
Selectable PWM: 600 ~ 25.000 Hz
ELECTRICAL
Mains power supply: 100-240 V – 50/60 Hz
Max power consumption: 260W
Output (at 230 V): 11 units on a single power line
Power factor: >0,93
PHYSICAL
Cooling: combination of heat pipe cooling system and low noise fan
Sospension and fixing: bracket for hanging and positioning

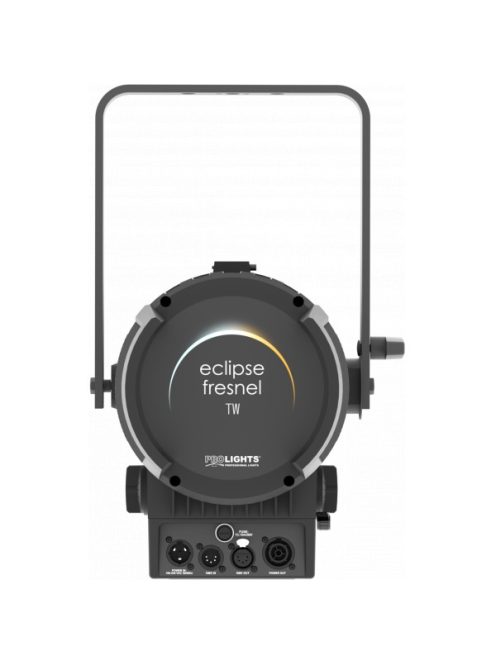

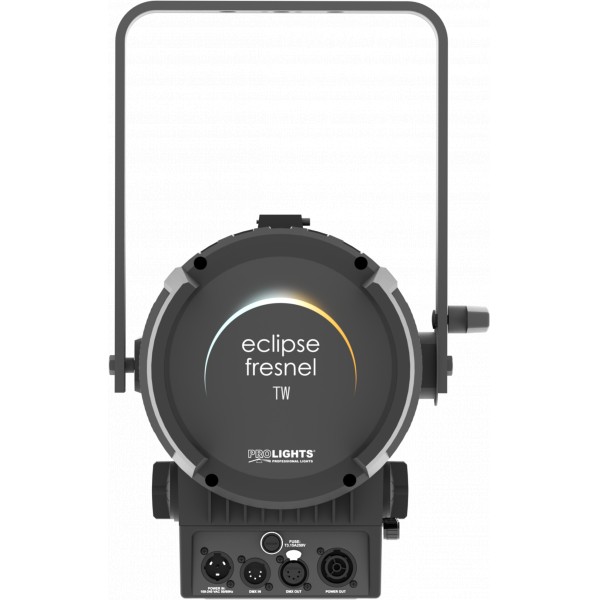

Signal connection: Amphenol XLR 5p IN/OUT connectors
Power connection: Neutrik powerCON TRUE1 IN/OUT connectors
IP rating: 20

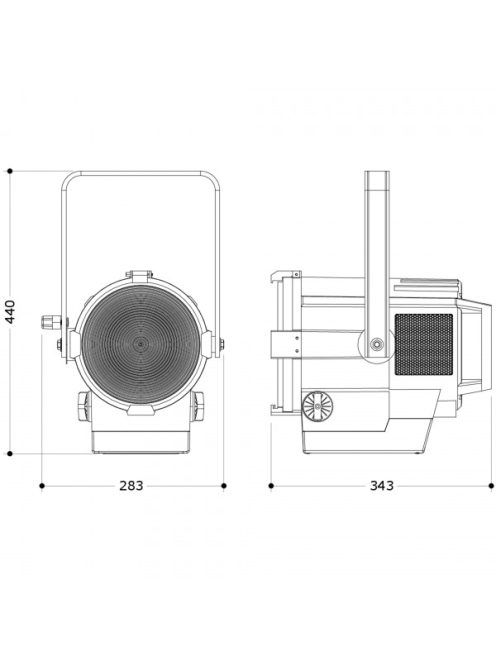

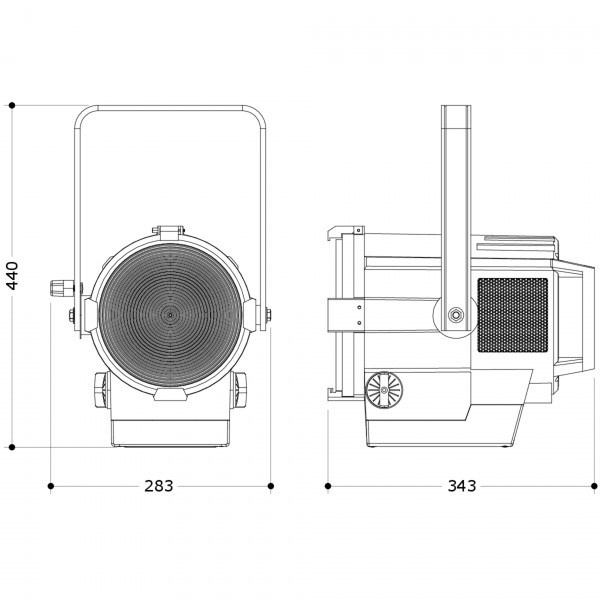

Dimensions (WxHxD): 283x440x343mm
Weight: 7,5kg
|
