LIGHT SOURCE Source: 130W 6 colour custom LEDs source (red, orange, cyan, royal blue, green, lime) CCT: 2.800 K - 10.000K Luminous flux: (15,5°) 1'610 lm - (55°) 2'952lm @full Lux: (15,5°) 709 lx - (55°) 145lx @5 m full CRI: 91 @ 3200K; 92 @ 5600K R9: 95 @ 3200K; 93 @ 5600K TLCI: 86 @ 5600K TM30 Rf: 88 @ 3200K; 86 @ 5600K TM30 Rg: 106 @ 3200K; 104 @ 5600K Source life expectancy: > 50.000 h
OPTICS Zoom: 15,5° - 55° half peak angle Lens diameter: 6'' - 150mm Lens type: fresnel zoom lens
COLOUR SYSTEM Colour mixing: tunable white + colour CTC: CTC control, + / - green correction, Tungsten emulation White presets: 2.800 K - 10.000K Colour wheel: virtual colour wheel with macros Macros: several pre-build macros with adjustable speed
DYNAMIC EFFECTS Static colour mode: selection of static colour Manual colour mode: manual adjustment of intensity, CT, colour correction from knob Auto mode: built-in programs with execution speed adjustment Special features: linear crossfade channel from any white to any colour; virtual CTO on colours
BODY Hardware on-board: filter frame, 8 doors barndoor, spigot Body: sturdy die-cast aluminium body Body colour: black
|
|
CONTROL Protocols: DMX512, RDM, rotatory knob DMX channels: 1 / 2 / 5 - 1 / 5 - 2 / 7 / 9 / 12 / 13 / 16 / 19 / 21channel RDM: RDM ready for remote monitoring and settings Display: Graphic User Interface Firmware upgrade: yes, via USB - DMX interface (UPBOX1) not included Other: 16bit control of dimmer and colour
ELECTRONICS Dimmer: linear 0 ~ 100% electronic dimmer Dimmer curves: 4 selectable dimming modes available Strobe / shutter: 1 - 30 Hz, electronic LED Control: flicker free frequency with adjustable PWM Selectable PWM: 600 ~ 25.000 Hz
ELECTRICAL Mains power supply: 100-240 V – 50/60 Hz Max power consumption: 100W Output (at 230 V): 23 units on a single power line Power factor: >0,95
BATTERY Battery: 29,6V 4400 mAh external battery (optional ECLFRSJBP4) Re-charge connection: connection for external battery throught XLR 4p Other: Voltage range: 22,4V-33,6V

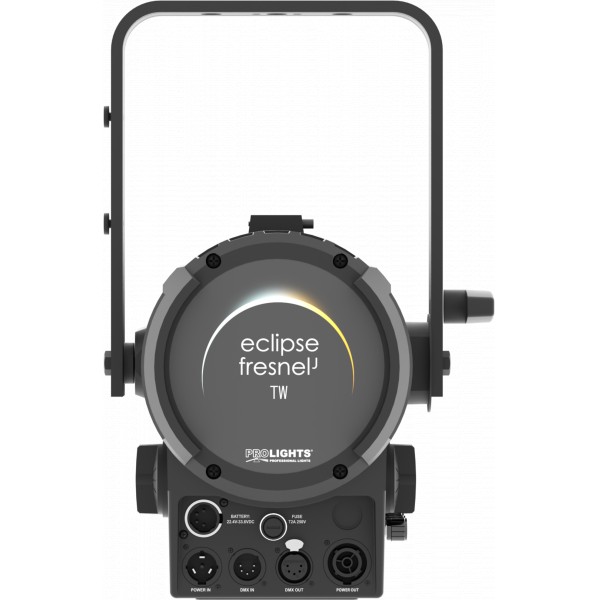

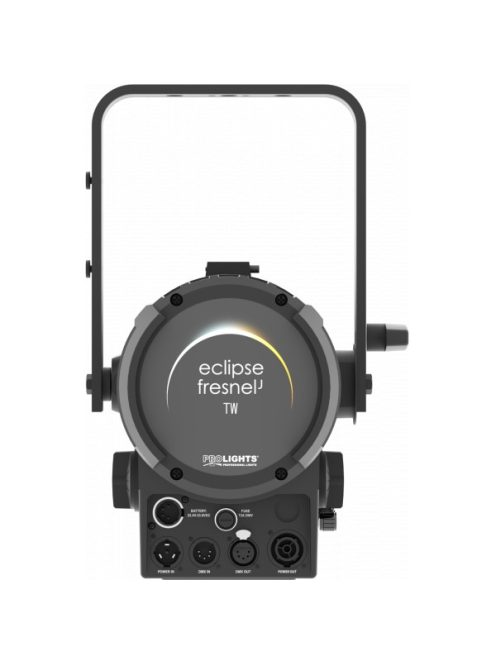

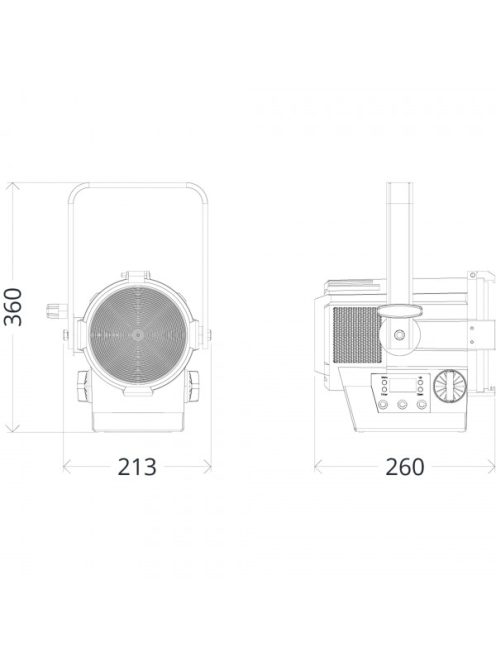

PHYSICAL Cooling: combination of heat pipe cooling system and low noise fan Sospension and fixing: bracket for hanging and positioning Signal connection: Amphenol XLR 5p IN/OUT connectors Power connection: Neutrik powerCON TRUE1 IN/OUT connectors IP rating: 20 Dimensions (WxHxD): 235x360x260mm Weight: 6kg
|
