LIGHT SOURCE
Source: 7x15W RGBW Osram Ostar LEDs
Lux: (6°) 10'980 lx - (66°) 745lx @3 m full
Source life expectancy: > 50.000 h
OPTICS
Zoom: 6° - 66° motorised linear zoom
Lens diameter: 126mm
Lens type: honeycomb gapless plano-convex optics
COLOUR SYSTEM
Colour mixing: RGBW / FC
CTC: CTC control through dedicated DMX channel
White presets: 2.000 K ~ 10.000K
Colour wheel: virtual colour wheel with presets
DYNAMIC EFFECTS
Pixel patterns: pre-programmed dynamic and static patterns
FX generator: adjustable foreground/background colour, index, speed, direction
Special features: Pixels controlled through On/Off switch for simplified control and budget friendly
BODY
Pan angle: 630°
Tilt angle: 265°
Pan/Tilt resolution: bit 8 / 16 bit
Feedback: automatic repositioning after accidental movement
Body: aluminium structure with hi-resistance polycarbonate cover
Body colour: black, white finishing available
|
|
CONTROL
Protocols: DMX512, RDM
DMX channels: 18 / 19 / 20 / 26 / 50channel
Pixel control: pixel2pixel control through on/off switch
W-DMX: optional, wireless solution receiver
RDM: RDM ready for fixture remote monitor and settings
Display: LCD high resolution colour display
Firmware upgrade: yes, via USB - DMX interface (UPBOX2) not included
Hibernation: power safe mode when lost DMX
Master/Slave: for synchronized operation of more units linked in a chain
ELECTRONICS
Dimmer: linear 0 ~ 100% electronic dimmer
Strobe / shutter: 1 - 25 Hz, electronic
Battery backup: battery backup for user operation without connecting to the main power
Operating temperature: -10° ~ +45°
Flicker: flicker free operation
ELECTRICAL
Power supply: 100-240 V – 50/60 Hz
Power consumption (at 230 V): 125W
Power consumption (at 120 V): 125W
Output (at 230 V): 12 units on a single power line
PHYSICAL
Cooling: combination of heat pipe cooling system and low noise fan
Sospension and fixing: any position with quick-lock omega brackets

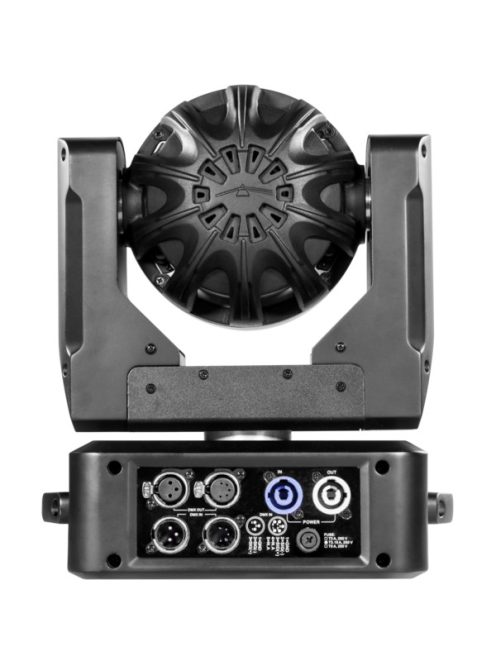

Signal connection: Amphenol XLR 3p + 5p IN/OUT connectors
Power connection: Neutrik powerCON IN/OUT connectors
IP rating: 20

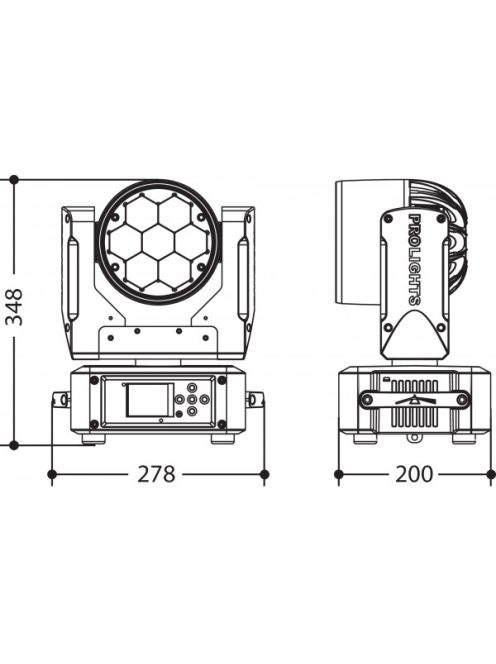

Dimensions (WxHxD): 278x348x200mm
Weight: 6,4kg
|
