LIGHT SOURCE
Source: 50W RGB LED
Lux: 141'929lx @3 m full
Lux: 51'094lx @5 m full
Source life expectancy: > 50.000 h
OPTICS
Beam angle: 2°
Lens diameter: 116mm
Lens type: high-quality glass lens optics
Focus: motorised
COLOUR SYSTEM
Colour mixing: RGB / FC
CTC: CTC control through dedicated DMX channel
White presets: 2.000 K - 8.000K
Colour wheel: virtual colour wheel with presets
Macros: several pre-build pixel macros with adjustable speed
DYNAMIC EFFECTS
Fixed gobos: 17 fixed gobos + open
Circular prism: 8f with bi-directional rotation, indexing
Linear prism: 6f with bi-directional rotation, indexing
Frost: frost unit to soften the beam edge
BODY
Pan angle: 540° / 630° with 360° continuous rotation
Tilt angle: 265° with 360° continuous rotation
Pan/Tilt resolution: bit 16 bit
Feedback: automatic repositioning after accidental movement
Body: sturdy die-cast aluminium body conceived for long-time durability
Body colour: black
|
|
CONTROL
Protocols: DMX512, RDM, Art-Net, W-DMX
DMX channels: 18 / 20 / 22 / 23channel
W-DMX: included, wireless solution receiver
RDM: RDM ready for fixture remote monitor and settings
Display: LCD high resolution colour display with autoflip
Firmware upgrade: yes, via USB - DMX interface (UPBOX2) not included
Hibernation: power safe mode when lost DMX
Master/Slave: for synchronized operation of more units linked in a chain
ELECTRONICS
Dimmer: linear 0 ~ 100% electronic dimmer
Strobe / shutter: 1 - 30 Hz, electronic
Battery backup: battery backup for user operation without connecting to the main power
Operating temperature: 0° ~ +45°
Flicker: flicker free operation
ELECTRICAL
Power supply: 100-240 V – 50/60 Hz
Power consumption (at 230 V): 122W
Power consumption (at 120 V): 124W
PHYSICAL
Cooling: forced air with low noise fan
Sospension and fixing: any position with quick-lock omega brackets
Signal connection: Amphenol XLR 5p IN/OUT connectors
Data connection: Art-Net RJ45 IN/OUT
Power connection: Seetronic powerCON IN/OUT connectors
IP rating: 20

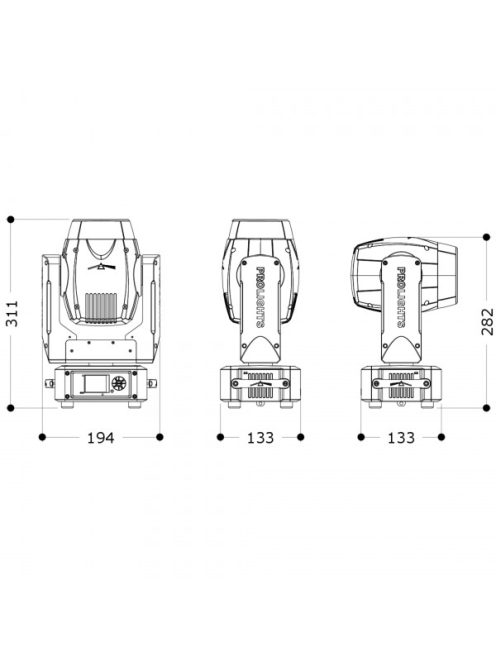

Dimensions (WxHxD): 194x311x133mm
Weight: 12kg
|
