LIGHT SOURCE
Source:1.024x1W
RGBW LEDs
CCT:
W: 6.500K
Luminous flux:Strobe without lens (peak) 126000 lm; Static ON without lens 28834; Strobe with lens (peak) 46200; Static ON with lens 27188lm
Lux:(120°) 1'139 lx - (40°) 4'152lx@3 m full
Lux:(120°) 410,1 lx - (40°) 1'495lx@5 m full
Source life expectancy:>30.000h
OPTICS
Beam angle:without lens 120°, with lens 40°
Field angle:without lens 150°, with lens 80°

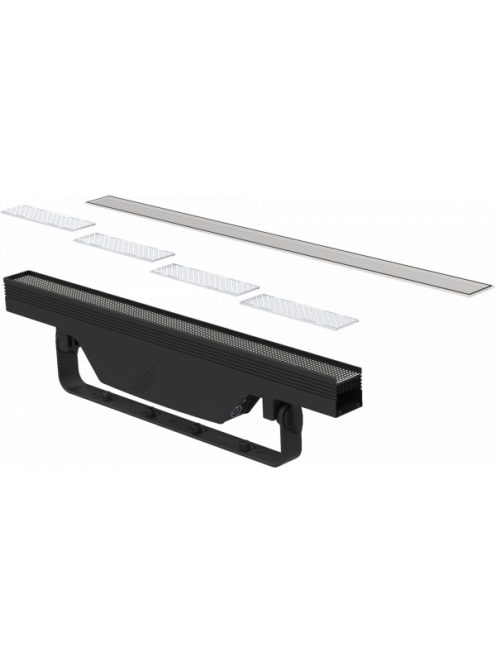

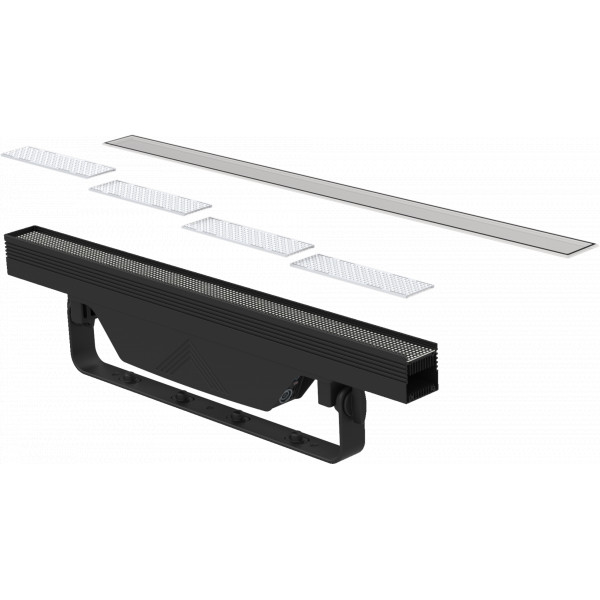

Other:Mountable 40° lens reflector plate (included)
COLOUR SYSTEM
Colour mixing:RGBW / FC
White presets:2.800 K -10.000K
Colour wheel:virtual colour wheel with macros
DYNAMIC EFFECTS
Rotating gobos:dynamic patterns with speed and rotation control
Pixel patterns:pre-programmed dynamic and static patterns
FX generator:adjustable foreground/background colour, index, speed, direction
Static colour mode:selection of static colour
Manual colour mode:manual adjustment of colour
Auto mode:built-in programs with execution speed adjustment
Special features:Multi-layer pixel FX control
|
|
CONTROL
Protocols:DMX512, RDM, Art-Net, Kling-Net
DMX channels:from 4 ch to 87
channel
Pixel control:
1 / 2 / 4 / 8 / 16
individually select and control sections
RDM:RDM ready for remote monitoring and settings

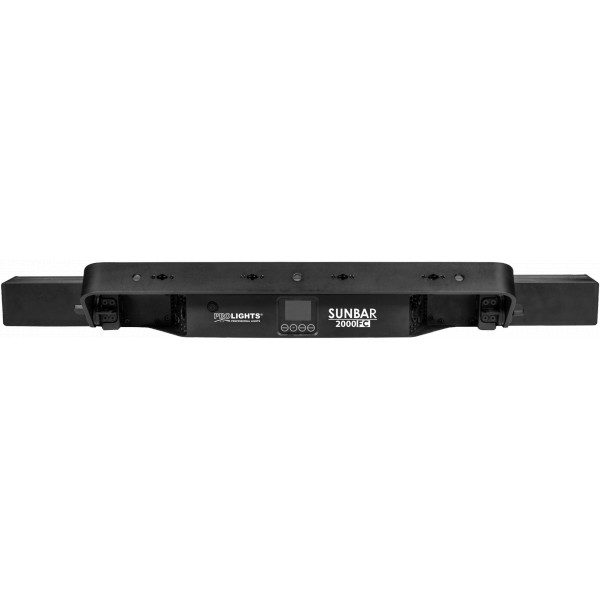

Display:black TFT touch display
Firmware upgrade:yes, via USB - DMX interface (UPBOX1) not included
ELECTRONICS
Dimmer:linear 0 ~ 100% electronic dimmer
Dimmer curves:4
selectable dimming modes available
Strobe / shutter:1 - 30
Hz, electronic
Operating temperature:-10° ~ +45°
Selectable PWM:600 ~ 25.000 Hz
ELECTRICAL
Mains power supply:100-240 V – 50/60 Hz
Max power consumption:strobe: 987 W - static: 600W
Max power consumption (at 120 V):strobe: 1.065 W - static:630W
Output (at 230 V):3
units on a single power line
Output (at 120 V):1
units on a single power line
PHYSICAL
Cooling:active, silent operation
Suspension and fixing:hanging bracket for floor positioning with "Quick-Lock" system
Signal connection:Amphenol XLR 5p IN/OUT connectors
Data connection:Art-Net
RJ45 IN/OUT
Power connection:Seetronic powerCON waterproof IN/OUT connectors
IP rating:20

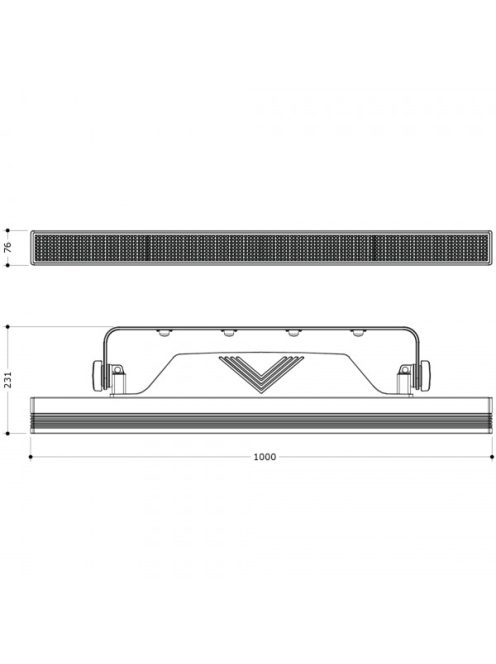

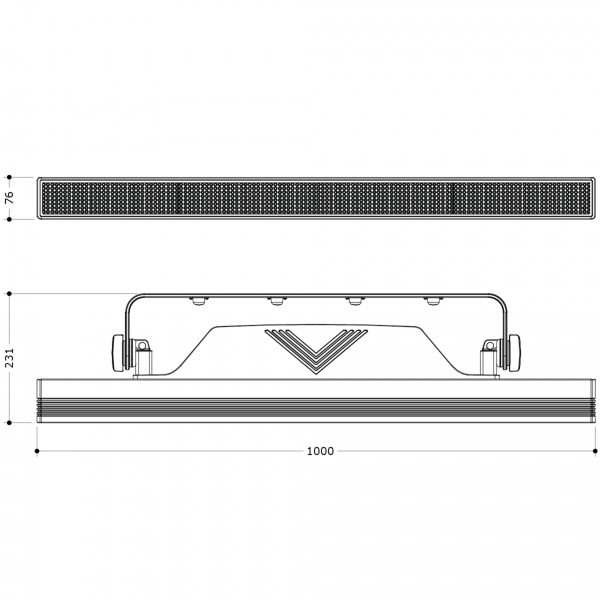

Dimensions (WxHxD):
1.000x75x231mm
Weight:9,5kg
|
