LIGHT SOURCE
Source: 740W RGB + Warm White
CCT: 2.800 K - 10.000K
CRI: > 94
R9: > 92
Luminous flux: (LD) 27'326 lm - (MD filter) 24'616 lm - (HD filter) 20'912lm
Lux: (LD) 1'520 lx - (MD filter) 1'370 lx - (HD filter) 1'030lx @3 m full
Lux: (LD) 547 lx - (MD filter) 493 lx - (HD filter) 371lx @5 m full
Source life expectancy: > 50.000 h
Other: TM-30-15RF/RG: 83/112 - TLCI: 94,4
OPTICS
Beam angle: (LD) 102° - (MD filter) 100° - (HD filter) 108°
Field angle: (LD) 154° - (MD filter) 155° - (HD filter) 159°
Lens type: holographic frost filter
Additional optics: interchangable and different optional filter to adjust the beam spread
Other: MD filter included on-bord fixture - LD filter, HD filter and INT filter optional
COLOUR SYSTEM
Colour mixing: RGB + WW
CTC: CTC control through dedicated DMX channel, + / - green and magenta correction and amber shift activation by DMX
White presets: 2.800 K - 10.000K
Colour wheel: virtual colour wheel with presets
Macros: built-in white presets
DYNAMIC EFFECTS
Pixel patterns: pre-programmed dynamic and static patterns
Static colour mode: selection of static colour
Manual colour mode: manual adjustment of intensity, CT, colour correction from knob
Auto mode: built-in programs with execution speed adjustment
Special features: linear crossfade from a white to any color and CTO applied on colors
BODY
Pan angle: (with PO system) 360° with manual regulation
Tilt angle: (with PO system) 360° with manual regulation
Body: sturdy die-cast aluminium body conceived for long-time durability
Body colour: black
Other: spigot (included); 30° egg craft (optional); 60° egg craft (optional); eggcrate (optional); barndoors (optional)
|
|
CONTROL
Protocols: DMX512, RDM, W-DMX, local knob
DMX channels: theatre: 1 / 2 / 4 / 5-1/ 5-2 / 6 / 10 / 15 / 17 - tour: 4 / 6 / 10 / 11 / 15 - pixel: 1 / 2H / 2V / 4H / 4V / 8channel
Pixel control: 8 section control
W-DMX: included, wireless solution receiver
RDM: RDM ready for fixture remote monitor and settings
Display: black OLED high resolution display
Firmware upgrade: yes, via USB - DMX interface (UPBOX1) not included
Master/Slave: for synchronized operation of more units linked in a chain
ELECTRONICS
Dimmer: linear 0 ~ 100% electronic dimmer
Dimmer curves: different dimming curves available
Strobe / shutter: 1 - 30 Hz, electronic
Operating temperature: -20° ~ +45°
Flicker: flicker free operation
Selectable PWM: 600 ~ 36.000 Hz
ELECTRICAL
Power supply: 100-240 V – 50/60 Hz
Power consumption (at 230 V): 452W
Power consumption (at 120 V): 456W
Output (at 230 V): 6 units on a single power line
Output (at 120 V): 3 units on a single power line
Power factor: pF 0,97 @230 V - pF 0,99 @120 V
BATTERY
Re-charge connection: connection for external battery throught XLR 4p
PHYSICAL
Cooling: forced air with low noise fan
Sospension and fixing: bracket for truss rigging and hardware for connection of more units
Signal connection: Amphenol XLR 5p IN/OUT connectors
Power connection: Neutrik powerCON TRUE1 IN/OUT connectors
IP rating: 20

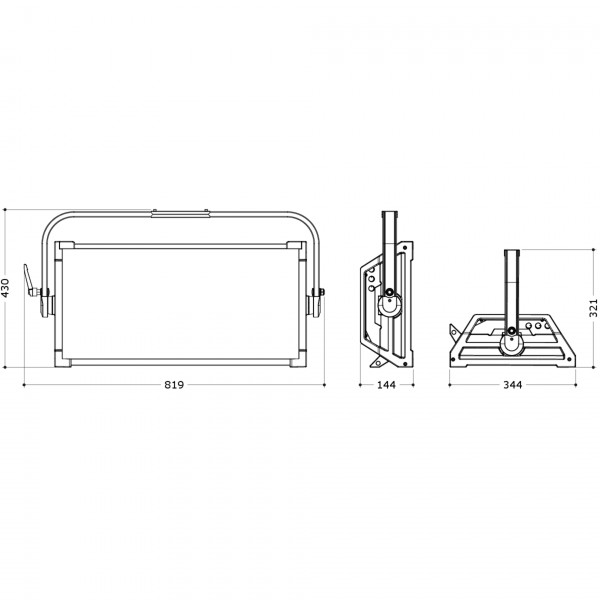

Dimensions (WxHxD): 819x430x144 mm / 836x343x118 (with PO system)mm
Weight: 15,2kg
|
