LIGHT SOURCE
Source: 370W RGB + Warm White
Luminous flux: 17'109lm @4.000 K with LD filter
Lux: @4000K, 265lx @5 m

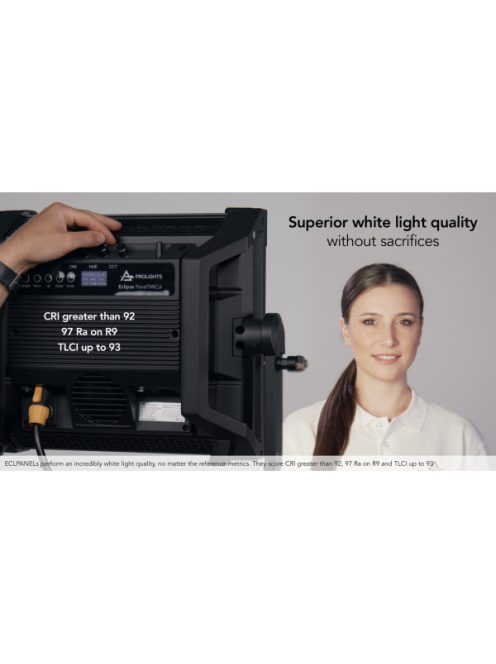

CRI: 90 @3.200 K; 94 @5.600 K
R9: 84,1 @3.200 K; 88,8 @5.600 K
TLCI: 92 @5.600 K
TM30 Rf: 90 @3.200 K; 89,4 @5.600 K
TM30 Rg: 105 @3.200 K; 104 @5.600 K
Source life expectancy: > 50.000 h
OPTICS

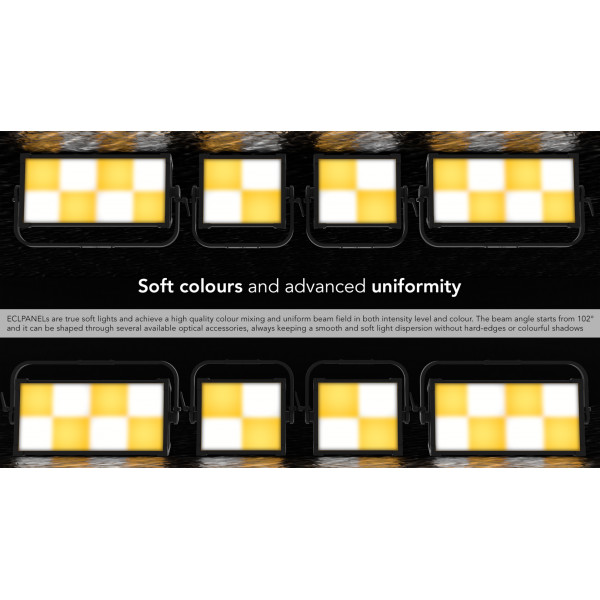

Beam angle: 102°
Field angle: 158°
Lens type: medium density diffusion panel (interchangeable)
Additional optics: see available accessories
COLOUR SYSTEM
Colour mixing: RGB + Warm White
CCT: CCT control, + / - green correction, tungsten emulation

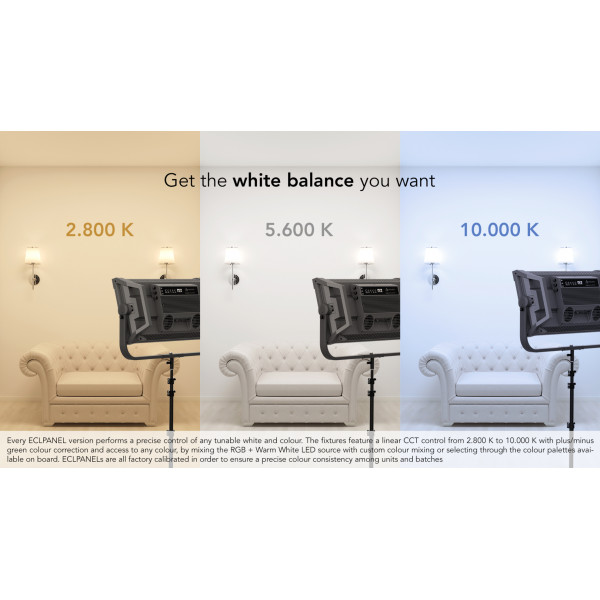

White presets: 2.800 K - 10.000K with 28 K resolution
Colour wheel: virtual colour wheel with macros
DYNAMIC EFFECTS
Control Resolution: 16bit dimmer, colours
Pixel patterns: pre-programmed pixel macros and cinema lighting effects patterns
Special features: linear crossfade channel from any white to any colour; virtual CTO on colours
BODY
Body: sturdy die-cast aluminium body
Body colour: black
CONTROL

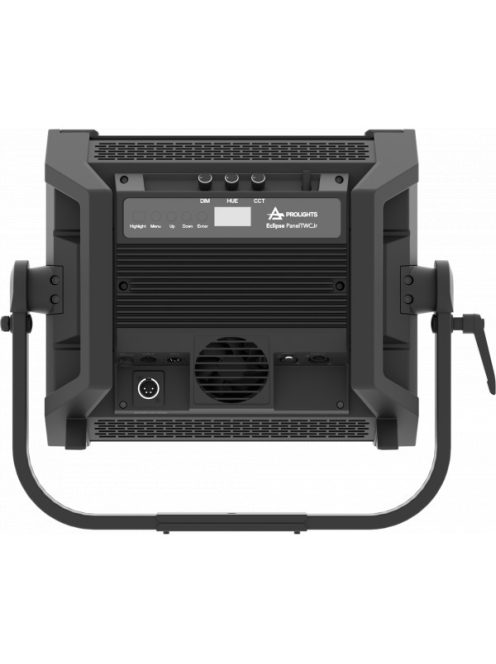

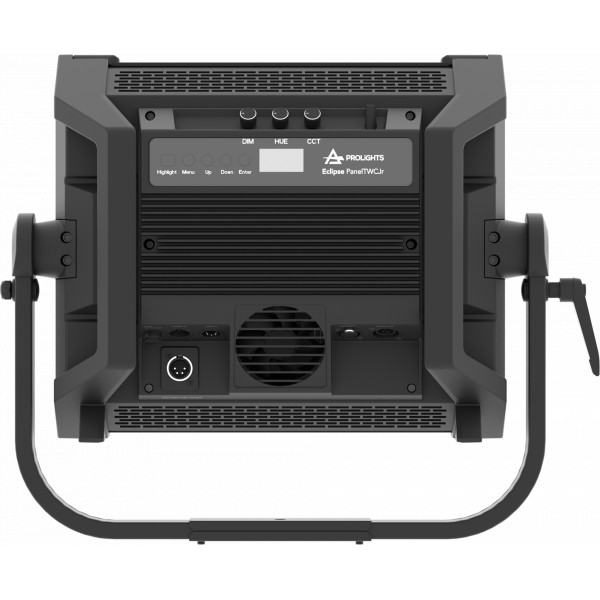

Protocols: DMX512, RDM, W-DMX, rotatory knob
Stand Alone: selectable mode through 3 rotatory knobs
Pixel control: 4 section control
W-DMX: included, wireless solution receiver
RDM: RDM for remote monitoring and settings
Display: Graphic User Interface
Firmware upgrade: yes, via USB - DMX interface (UPBOX1) not included
|
|
ELECTRONICS
Dimmer: linear 0 ~ 100% electronic dimmer
Dimmer curves: selectable dimming modes available
Strobe / shutter: 1 - 30 Hz, electronic
Display battery: self-charging battery backup
Operating temperature: -20° ~ +45°
LED Control: flicker free frequency with adjustable PWM
Selectable PWM: 600 ~ 40.000 Hz
ELECTRICAL
Mains power supply: 100-240V - 50/60Hz
Low Voltage DC mains: 24-36V
Max power consumption: 230W
Power factor: >0,97
PHYSICAL
IP rating: 20
Cooling: active, silent operation

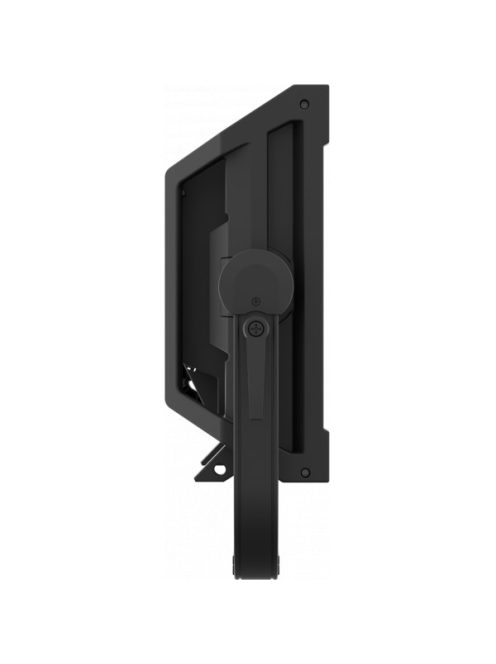

Suspension and fixing: bracket for hanging and positioning

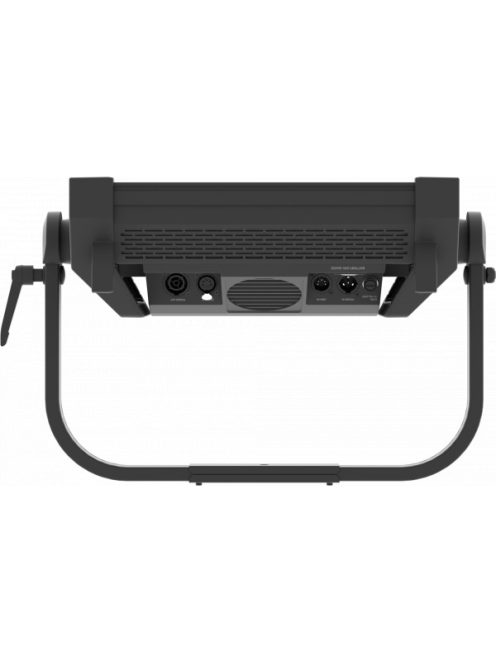

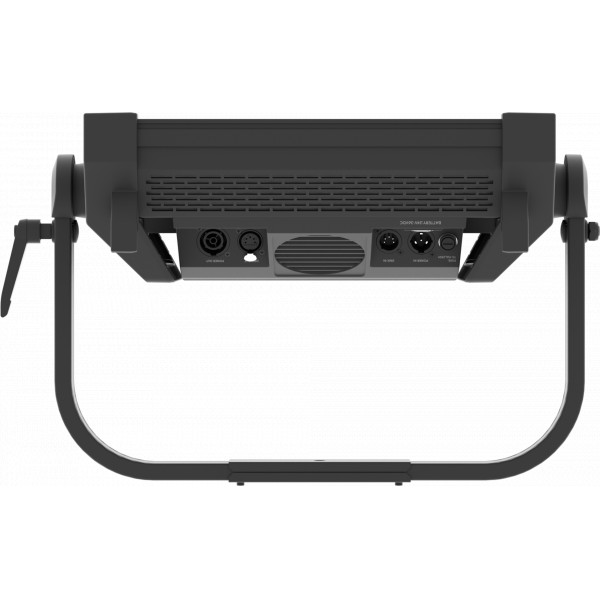

Signal connection: Amphenol XLR 5p IN/OUT connectors
Power connection: Neutrik powerCON TRUE1 IN/OUT connectors
Low Voltage DC connector: XLR 4p
Dimensions (WxHxD): 529x430x144 mm / (with PO system) 546x430x144mm
Weight: 10,5 kg / (with PO system) 11,8kg
BOX CONTENT
1 x ECLPANELTWCJR
1 x 1,5 meters power cable (SCHUKO plug - NEUTRIK POWERCON TRUE1 IP65)
1 x ECLFRSPG
User Manual
|
