LIGHT SOURCE
Source: 150W COB RGB / FC LED
Luminous flux: 3'682lm
Lux: (60°) 428lx @3 m full
Lux: (30°) 908lx @3 m full
Source life expectancy: > 30.000 h OPTICS
Beam angle: 60°
Field angle: 80°
Lens type: parabolic reflector in combination with HD fresnel lens

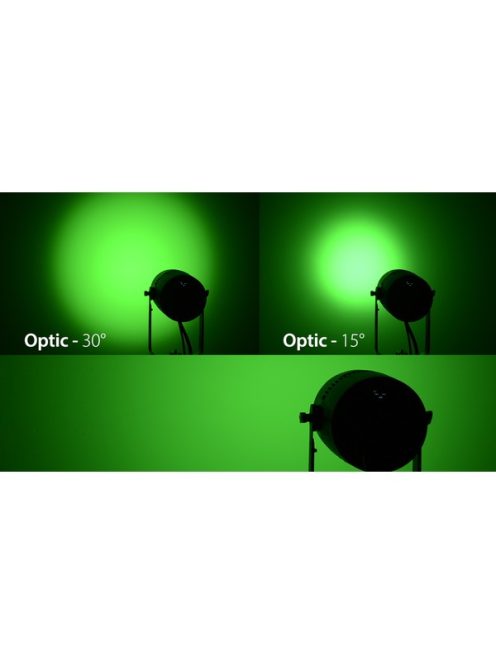

Additional optics: 30° (inc) - 15° (opt) COLOUR SYSTEM
Colour mixing: RGB / FC
Colour wheel: virtual colour wheel with macros
Macros: several pre-built macros with adjustable speed DYNAMIC EFFECTS
Static mode: selection of static colour
Manual mode: manual adjustment of colour
Auto mode: built-in programs with execution speed adjustment BODY
Body: sturdy die-cast aluminium body

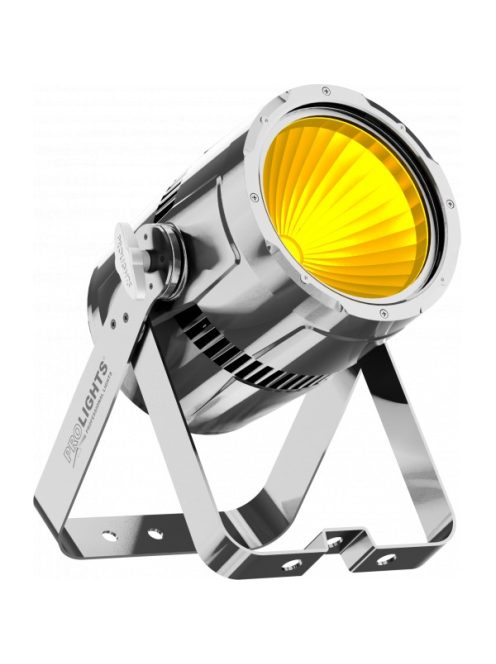

Body colour: black, mirror and white finishing available black CONTROL
Protocols: DMX512
DMX channels: 3 / 5 / 8channel
Display: Graphic User Interface
Firmware upgrade: yes, via USB - DMX interface (UPBOX1) not included
Master/Slave: for synchronised operation of more units linked in a chain | | ELECTRONICS
Dimmer: linear 0 ~ 100% electronic dimmer
Dimmer curves: 4 selectable dimming modes available
Strobe / shutter: 1 - 28 Hz, electronic
Operating temperature: -10° ~ +45°
LED Control: flicker free operation
Selectable PWM: 600 ~ 25.000 Hz ELECTRICAL
Mains power supply: 100-240V - 50/60Hz
Max power consumption: 145W
Max power consumption (at 120V): 145W
Output (at 230V): 12 units on a single power line
Power factor: 0,96 PHYSICAL
IP rating: 20
Cooling: active, silent operation
Suspension and fixing: double hanging bracket suitable for safe hanging and for floor positioning

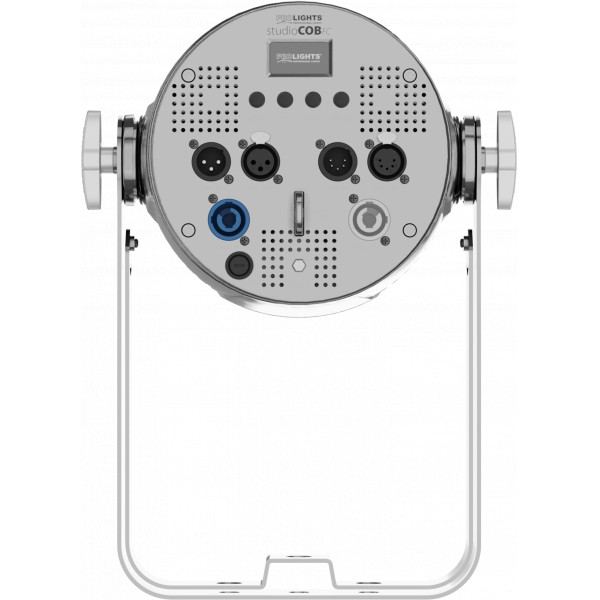

Signal connection: XLR 3p + 5p IN/OUT connectors
Power connection: Neutrik powerCON IN/OUT connectors
Dimensions (WxHxD): 262x190x371mm
Weight: 4,5kg CERTIFICATIONS / APPROVALS
Certifications / Approvals: CE, UKCA, RCM BOX CONTENT
1 x STUDIOCOBFC
1 x 1,5 meters power cable (BARE END - NEUTRIK POWERCON)
User Manual |
