LIGHT SOURCE
Source: 1.024x1,3W high-power white LED
CCT: CW: 7.000K
CRI: 87
Luminous flux: strobe without lens (peak) 160'000 lm - static ON without lens 45'000 - strobe with lens (peak) 112'000 - static ON with lens 40'000lm
Lux: (120°) 2'093 lx - (40°) 5'640lx @3 m
Source life expectancy: > 30.000 h
OPTICS
Beam angle: without lens 120°, with lens 40°
Field angle: without lens 150°, with lens 80°

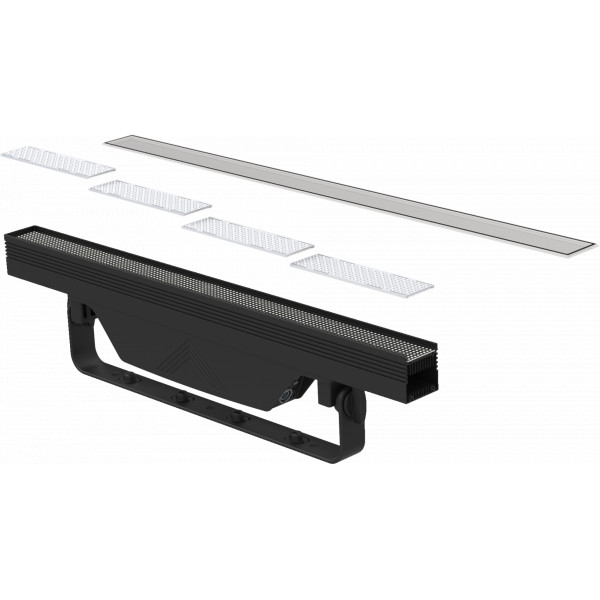

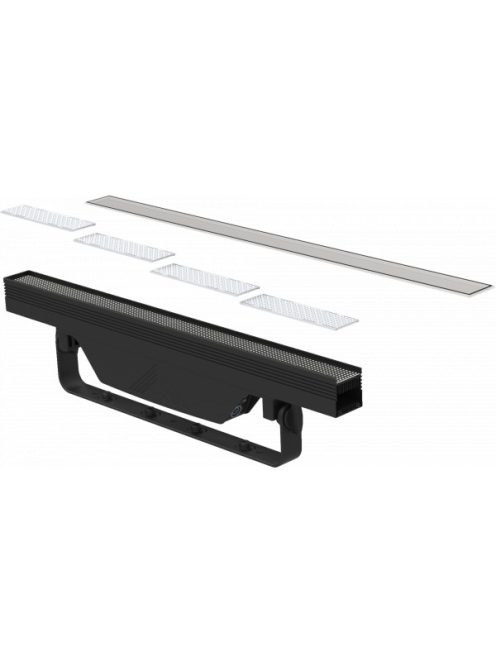

Additional optics: mountable 40° lens reflector plate (included)
DYNAMIC EFFECTS
Rotating gobos: dynamic patterns with speed and rotation control
Pixel patterns: pre-programmed dynamic and static patterns
FX generator: adjustable foreground/background index, speed, direction
Static colour mode: selection of static colour
Manual colour mode: manual adjustment of colour
Auto mode: built-in programs with execution speed adjustment
Special features: multi-layer pixel FX control
BODY
Hardware on-board: OMEGA sockets for quick rigging (clamp not included)
Body: sturdy die-cast aluminium body conceived for long-time durability
Body colour: black
|
|
CONTROL
Protocols: DMX512, RDM, Art-Net, Kling-Net
DMX channels: from 1 to 71channel
Pixel control: 1 / 2 / 4 / 8 / 16 / 64 individually select and control sections
RDM: RDM ready for fixture remote monitor and settings

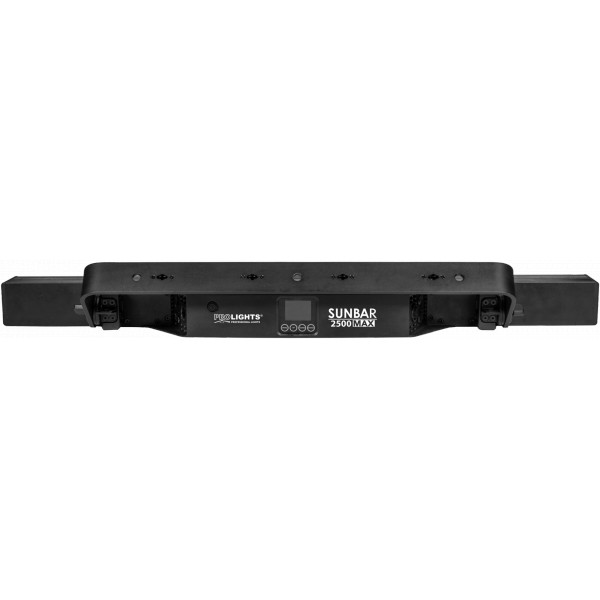

Display: black TFT touch display
Firmware upgrade: yes, via USB - DMX interface (UPBOX1) not included
ELECTRONICS
Dimmer: linear 0 ~ 100% electronic dimmer
Dimmer curves: 4 different dimming curves available
Strobe / shutter: 1 - 30 Hz, electronic
Operating temperature: -10° ~ +45°
Selectable PWM: 600 ~ 25.000 Hz
ELECTRICAL
Power supply: 100-240 V – 50/60 Hz
Power consumption (at 230 V): full static: 596 W - strobing: 1'060W
Power consumption (at 120 V): full static: 621 W - strobing: 1'166W
Output (at 230 V): 3 units on a single power line
PHYSICAL
Cooling: forced air with low noise fan
Sospension and fixing: hanging bracket for floor positioning with "Quick-Lock" system
Signal connection: Amphenol XLR 5p IN/OUT connectors
Data connection: Art-Net RJ45 IN/OUT
Power connection: Seetronic powerCON waterproof IN/OUT connectors
IP rating: 20

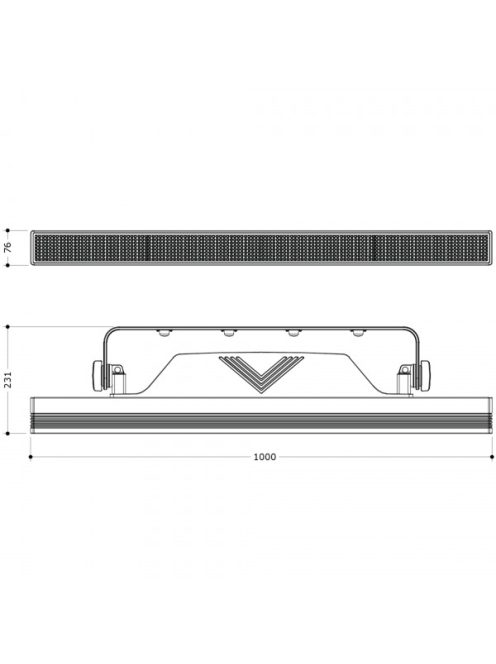

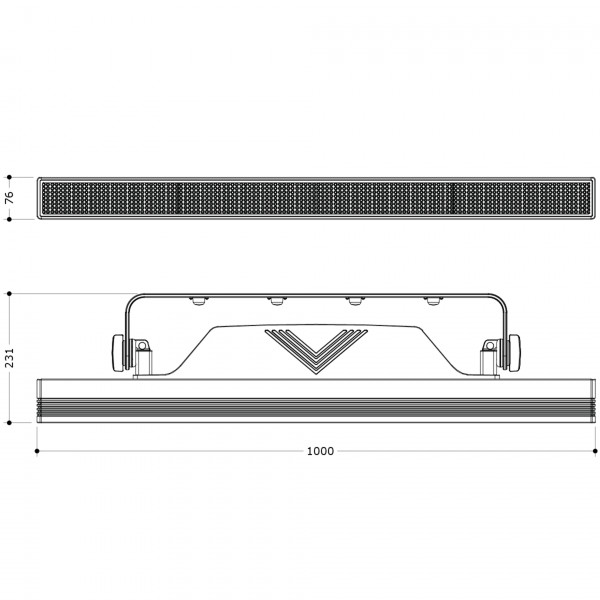

Dimensions (WxHxD): 1.000x75x231mm
Weight: 9,5kg
|
