LIGHT SOURCE
Source: 6x40W RGBW LEDs

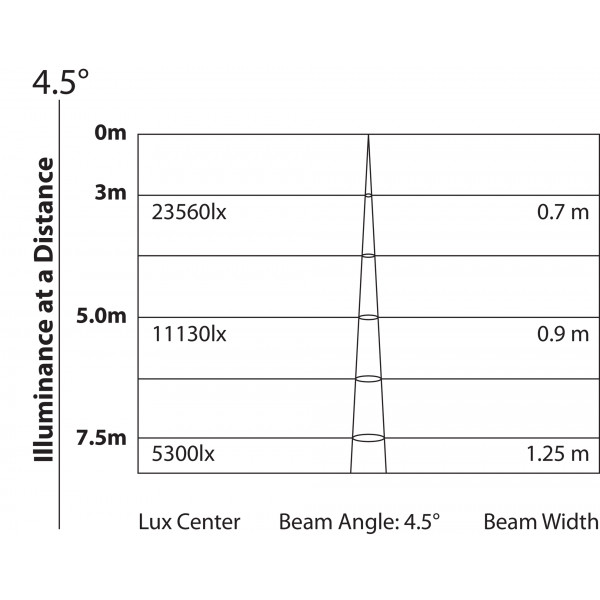

Lux: 85'611lx @3 m full
Source life expectancy: > 50.000 h
OPTICS
Beam angle: 4,5°
Lens diameter: 67mm
COLOUR SYSTEM
Colour mixing: RGBW / FC
CTC: CTC control through dedicated DMX channel
White presets: 2.800 K ~ 9.000K
Colour wheel: virtual colour wheel with presets
Macros: several pre-build pixel macros with adjustable speed
DYNAMIC EFFECTS
Pixel patterns: pre-programmed dynamic and static patterns
FX generator: adjustable foreground/background colour, index, speed, direction
Special features: pivot angle - 5° to + 15°
BODY
Pan angle: 630° with 360° continuous rotation
Tilt angle: 265° with 360° continuous rotation
Pan/Tilt resolution: bit 8 / 16 bit
Feedback: automatic repositioning after accidental movement
Body: aluminium structure with hi-resistance polycarbonate cover
Body colour: black
|
|
CONTROL
Protocols: DMX512, RDM, Art-Net
DMX channels: 23 / 25 / 49channel
Pixel control: pixel2pixel control
W-DMX: optional, wireless solution receiver
RDM: RDM ready for fixture remote monitor and settings
Display: LCD high resolution colour display
Firmware upgrade: yes, via USB - DMX interface (UPBOX2) not included
Hibernation: power safe mode when lost DMX
Master/Slave: for synchronized operation of more units linked in a chain
ELECTRONICS
Dimmer: linear 0 ~ 100% electronic dimmer
Strobe / shutter: 1 - 25 Hz, electronic
Battery backup: battery backup for user operation without connecting to the main power
Operating temperature: -10° ~ +45°
Flicker: flicker free operation
ELECTRICAL
Power supply: 100-240 V – 50/60 Hz
Power consumption (at 230 V): 216W
Power consumption (at 120 V): 216W
PHYSICAL
Cooling: forced air with low noise fan
Sospension and fixing: any position with quick-lock omega brackets

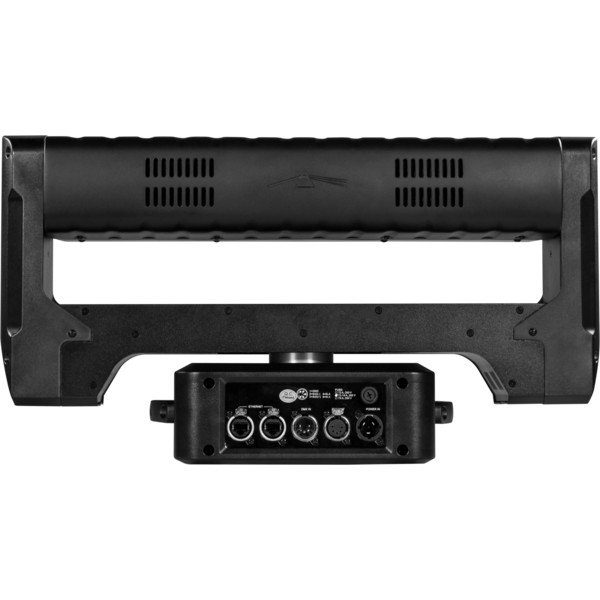

Signal connection: Amphenol XLR 5p IN/OUT connectors
Data connection: Art-Net RJ45 IN/OUT
Power connection: Neutrik powerCON TRUE1 IN connector
IP rating: 20
Dimensions (WxHxD): 550x320x200mm
Weight: 12kg
|
