LIGHT SOURCE
Source:500W
high-power white LED
CCT:(TU) 3.000 K - (DY) 5.600K
Luminous flux:(TU) (15°) 20'256 lm; (47°) 26'126lm
@full
Luminous flux:(DY) (15°) 26'255 lm; (45°) 32'428 lm @ full
Lux:(TU) (15°) 9'047 lx - (47°) 1'770lx
@5 m full
Lux:(DY) (15°) 11'975 lx - (47°) 2'306lx
@5 m full
CRI:(TU) >94; (DY) >91
R9:(TU) >73; (DY) >80
TLCI:(TU) >93; (DY) >93
TM30 Rf:(TU) >92; (DY) >88
TM30 Rg:(TU) <103; (DY) <104
Source life expectancy:>50.000h
OPTICS
Zoom:15° - 47°
half peak angle
Lens diameter:250mm
Lens type:Fresnel zoom lens
Other:spigot, barndoor and gel frame included
COLOUR SYSTEM
Colour mixing:warm white
Macros:several pre-build macros with adjustable speed
DYNAMIC EFFECTS
Static colour mode:selection of static dimmer
Manual colour mode:manual adjust of dimmer throught menu and knob
Auto mode:built-in programs with execution speed adjustment
BODY
Hardware on-board:filter frame, 8 doors barndoor, spigot
Pan angle:(for pole operated version) 360°
with manual regulation
Tilt angle:(for pole operated version) 150°
with manual regulation
Body:sturdy die-cast aluminium body
Body colour:black, white finishing available
Other:Spigot 28 mm
|
|
CONTROL
Protocols:DMX512, RDM, rotatory knob
DMX channels:
1 / 2 - 1 / 2 - 2 / 3 / 5
channel
RDM:RDM ready for remote monitoring and settings
Display:Graphic User Interface
Firmware upgrade:yes, via USB - DMX interface (UPBOX1) not included
Master/Slave:for synchronised operation of more units linked in a chain
Other:16bit control of dimmer
ELECTRONICS
Dimmer:linear 0 ~ 100% electronic dimmer
Dimmer curves:selectable dimming modes available
Strobe / shutter:1 - 30
Hz, electronic
Operating temperature:-10° ~ +45°
LED Control:flicker free frequency with adjustable PWM
Selectable PWM:600 ~ 25.000 Hz
ELECTRICAL
Mains power supply:100-240 V – 50/60 Hz
Max power consumption:500W
Output (at 230 V):4
units on a single power line
Power factor:>0,96
PHYSICAL
Cooling:combination of heat pipe cooling system and low noise fan
Suspension and fixing:bracket for hanging and positioning
Signal connection:Amphenol XLR 5p IN/OUT connectors
Power connection:Neutrik powerCON TRUE1 IN/OUT connectors
IP rating:20

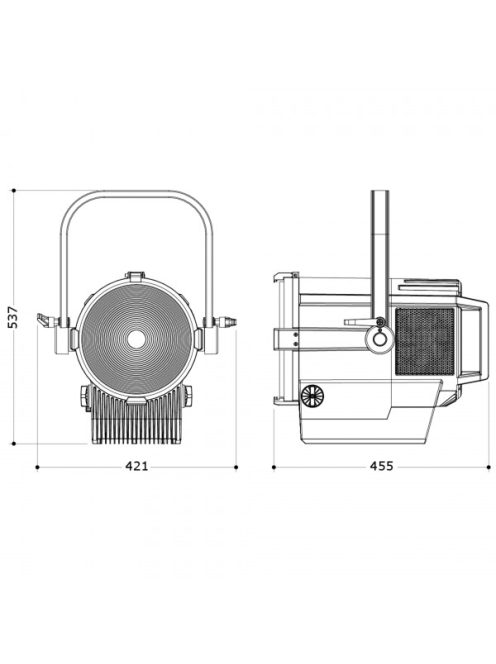

Dimensions (WxHxD):421x537x456 mm - (for pole operated version) 401x691x456mm
Weight:17,2 kg - (for pole operated version) 18kg
|
